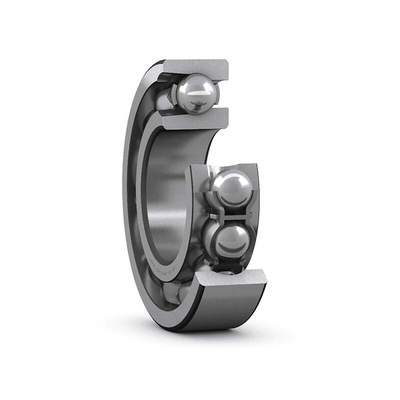

SKF 207 Single Row Deep Groove Ball Bearing- Open Type 35mm I.D, 72mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, With Filling Slots, 35mm ID, 72mm OD - 207

Ensure balanced rotation on your machine shaft using this deep-groove ball bearing from SKF. The versatile unit can accommodate axial and radial loads in both directions. Thanks to its reference speed of 17,000r/min and a limiting speed of 10,000r/min, you can use it in rapidly moving machinery. The integrated sheet metal cage keeps the rolling elements stable, so you can be sure of minimal friction, noise and vibration. As the tough steel housing is resistant to corrosion, this bearing can withstand use in demanding conditions.

Features & Benefits

• External dimensions of 35mm ID and 72mm OD to fit on small to medium-sized shafts
• Dynamic load rating of 27.5kN and static load rating of 22kN for reliable performance

Applications

• Energy industry
• Transmission systems
• Conveyor belts
• Wind turbines

What's meant by a ball bearing with filling slots?

Bearings with filling slots, like this unit, have empty grooves in their inner and outer rings. This means that they can accommodate additional balls on their raceway compared to standard deep-groove ball bearings. You'll typically find them used in applications that need high radial load-bearing capacity.
