SKF Bearing Lock Nut, AN 20

SKF Bearing Assembly, Lock Nut, 99.517mm ID - AN 20

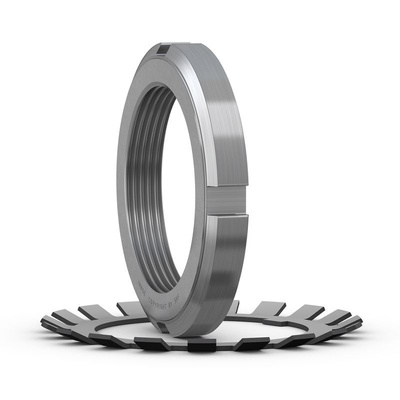

Easily install bearings on your shaft with this lock nut from SKF. With four built-in slots for your hook spanner around its circumference, it easily mounts onto your machinery for quick installation. A 270kN static axial load rating indicates that the assembly can withstand the force of fast-moving hardware and deliver dependable performance. It locks to your bearing with a washer to give you a secure mounting fit and even load distribution. As it has an industry-standard 12 threads per inch, this unit is widely compatible with commonly used appliances.

• Dismounts with simple twist and pull motions for quick replacement
• Slim 122.25mm outer diameter suits shafts in busy assemblies
• Works with adapter sleeves and tapered seats for versatility
• Can be reused after dismounting simply by replacing the washer

Applications

• Assembly lines
• Paper production
• Processing plants
• Rail industry

How do I lock this bearing lock nut in place with a washer?

After you've screwed your bearing, washer and lock nut onto your shaft, you can simply bend one of your washer's tabs into a slot on your lock nut to secure it in place.
