SKF Bearing Lock Nut, AN 26

SKF Bearing Assembly, Bearing Lock Nut Type, 129.692mm ID, 157.175mm OD - AN 26

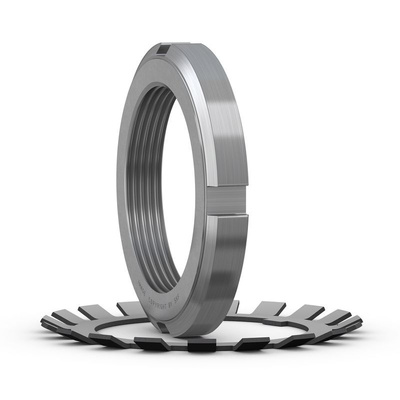

Use this bearing assembly from SKF to ensure your bearings are installed correctly. It includes a lock nut that secures a bearing to the shaft, ensuring you get stable performance at all operating speeds. With its static axial load capacity of 415kN, it handles heavy loads, making it reliable and versatile. This lock nut comes with a washer so it's ready for immediate mounting. Four evenly spaced spanner slots around its edge make it easy to install at any orientation.

Features & Benefits

• Mounts directly onto the shaft for easy installation
• Lock nut is reusable with a new washer to limit component replacement
• Tolerates misalignment up to 0.3mm for minimal disruption
• Works with cylindrical shafts, tapered seats and adapter sleeves for wide compatibility with common equipment

Applications

• Beverage production
• Packing plants
• Mining equipment
• Renewable energy industry

How do I lock my bearing using this bearing assembly?

After mounting your bearing, slide the assembly's washer onto your shaft until it meets the bearing. Push the lock nut onto the shaft and tighten until secure, then bend one of the washer's locking tabs into the lock nut to hold it steady.
