Keysight Technologies,Training Kit R-L-C circuit board with a BNC input,For Use With DSOX1204G DSOXBODE

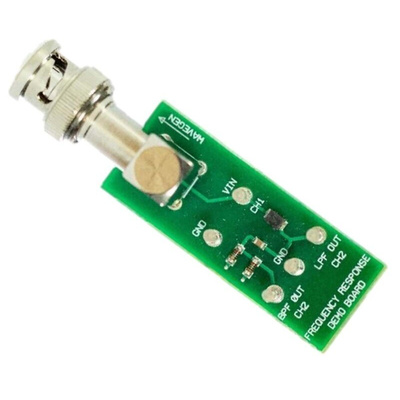

The Keysight Technologies DSOXBODE Bode plot training kit can be used to train engineering students and other oscilloscope users on how to perform frequency response analysis measurements (gain & phase Bode plots) using Keysight’s InfiniiVision oscilloscopes with the built-in WaveGen function generator. It includes a small training board consisting of a series R-L-C circuit with a BNC input that attaches directly to the output of the oscilloscope’s WaveGen function generator.

Lower bandpass cutoff frequency 3.2 kHz
Center bandpass frequency 50 kHz
Upper cutoff frequency 800 kHz
Maximum input voltage 10 VPP into 50 ?
Input connection type BNC

Datasheet - DSOXBODE

Instructionsheet - DSOXBODE
