IQ08-02BPOKW2S, Sick Inductive Block-Style Proximity Sensor, 2 mm Detection, PNP Normally Closed Output, 10 → 30 V, IP67, IP68

Overview

At a glance

Types: 5 mm x 5 mm x 25 mm or 8 mm x 8 mm x 40 mm
Extended sensing ranges: 0.8 mm to 4 mm
Electrical configuration: DC 3-wire
Enclosure rating: IP 67 or IP 68
Temperature range: –25 °C to +75 °C
Tough VISTAL™ housing
Thin version with 270° output state display

Your Benefit

Easy integration in space-critical applications
Reliable detection of fast handling and mounting processes

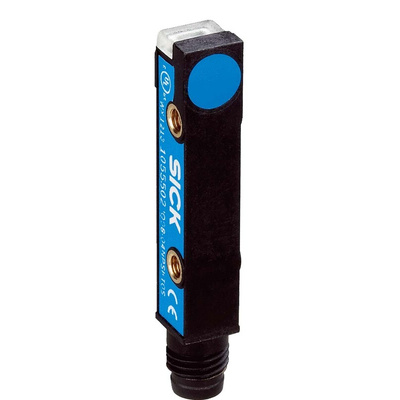

With slim dimensions of just 5 mm x 5 mm or 8 mm x 8 mm, the IQY sensors offer up to 4 mm in sensing range, thereby providing the best performance while taking up the least possible space. Integration into linear units or confined installation spaces is no problem. State-of-the-art SICK-ASIC technology, innovative hotmelt molding and an output state display that is visible from all angles makes a simple solution for modern handling and automation tasks, ensuring the highest levels of production reliability. No matter whether in VISTAL® or metal housing, the sensors of the IQV product family rise to every challenge with ease.

Applications

Tool monitoring (in-die sensing)
Detection on the load-carrying unit
Manual port loading

Quick and easy mounting
Thin housing provides a high degree of design freedom

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - IQ08-02BPOKW2S
