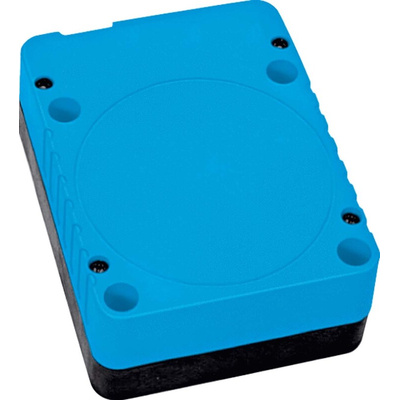

IQ80-60NPP-KK0, Sick Inductive Block-Style Proximity Sensor, 60 mm Detection, PNP Normally Open & Normally Closed Output, 10 →

Overview

At a glance

Type: 80 mm x 80 mm
Longer sensing ranges: 50 mm to 60 mm
Electrical configuration: DC 3-/4-wire, or AC/DC 2-wire
Enclosure rating IP 65 or IP 67
Temperature range: –25 °C to +80 °C
Plastic housing
Programmable N/O or N/C function
Sensing range setting via potentiometer

Your Benefit

Increase in machine availability
Reduced mechanical damage

With an adjustable sensing range of up to 60 mm, the sensors of the IQL product family offer a high degree of detection ease. Thanks to the freely configurable N/O and N/C output function, they also reduce costs in new and existing applications. Due to installation from above and the extended sensing range, the IQL sensors are optimally suited for recessed floor mounting, as is often found in the automotive industry or storage and conveyor technology. The IQL is also the number one choice when it comes to other applications.

Applications

Skid detection at the lifter exit
Fine positioning the body

Longer service life for reduced costs

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - IQ80-60NPP-KK0 INDU
