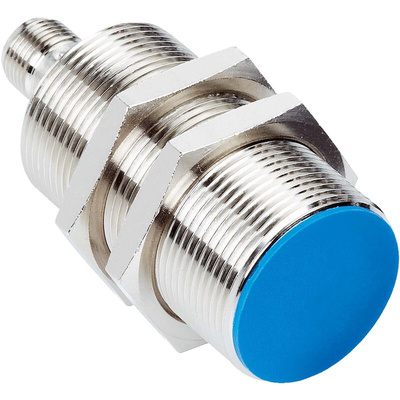

IMC30-10BPDZC0SA05, Sick Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 10 mm Detection, PNP Normally Open Output, 10 → 30 V,

Overview

At a glance

Types: M18 and M30
Sensing ranges: up to 10 mm flush
Speed and acceleration monitoring
Monitoring range: 6 to 12,000 pulses/min. and 0.1 to 2 pulses/sec.²
Switching and pulse output
Intelligent start-up delay
Speed monitoring can be flexibly configured via two thresholds
Flexible sensor settings, monitoring, extended diagnostics, and visualization thanks to IO-Link

Your Benefit

Speed-independent detection of speed changes
Faster detection of speed changes than conventional speed monitors
No readjustment after speed changes necessary
Precise and convenient configuration via software
IO-Link provides easy data access from the PLC
No time-consuming, individual configuration of start-up delay feature necessary
Reliable output signal thanks to adjustable speed thresholds (hysteresis)
No expensive counter cards necessary in PLC

The SAM sensor is the simple and intelligent way of speed monitoring with an additional IO-Link interface. SAM can be used as a classic speed monitor or innovative acceleration monitor with a revolutionary speed-independent monitoring function. It checks if an adjustable speed or acceleration threshold is crossed and provides a switching signal. SAM is setting new standards and revolutionizing commissioning tasks and fields of application thanks to its fast response time, monitored range of up to 12,000 pulses per minute and intelligent start-up delay.

Applications

Conveyor belt operation during material handling
Rotary valve operation during material handling

Damper positioning at duct system

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - IMC30-10BPDZC0SA05
