SKF Bearing Lock Nut, AN 18

SKF Bearing Assembly, Lock Nut, 109mm ID, 118mm OD - AN 18

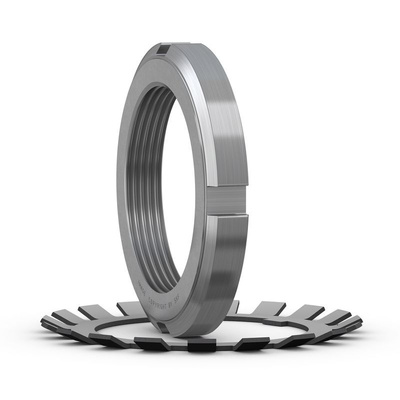

Complete your bearing assembly with this lock nut from SKF. It has four to eight evenly spaced slots around its outer edge that engage a hook or impact tool, making it easy to install. A static load rating of 219kN means it can handle heavy-duty radial loads, while a bore size of 89.58mm ensures easy compatibility with standard equipment. This compact unit has an inside diameter of 109mm and an outside diameter of 118mm, so it's suitable for installation in small-scale systems.

• Low weight of 0.64g makes it easy to handle and puts minimal strain on equipment
• Can be mounted directly to the shaft or adaptor sleeve for quick and simple installation
• Robust steel material is resistant to impact and corrosion for longevity, even in damp conditions

Applications

• Water pumps
• Moulding machines
• High-speed compressors
• Robotics systems

Can I reuse this locknut?

Yes, this lock nut can be reused, provided it isn't damaged during disassembly.

What tool do I need to install and remove this lock nut?

You should use the compatible hook spanner from SKF (HN 18-20).
