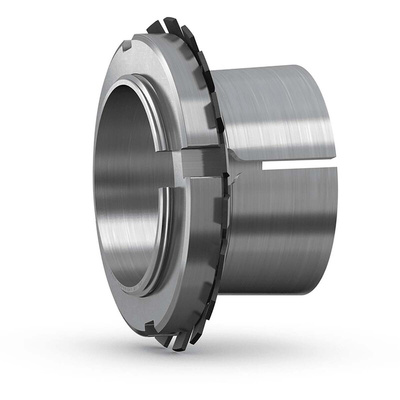

SKF Bearing Adapter Sleeve 180mm For Use With Metric shafts, H 3040

SKF Bearing Adapter Sleeve - H 3040

Use this SKF adapter sleeve in your roller bearing systems when you need to mount a tapered bore onto a cylindrical seat. It adjusts to the diameter of your shaft, giving you wider diameter tolerances. You can use this sleeve with plain shafts or stepped shafts, so it's a versatile option. The sleeve is simple to install – when using a plain shaft, you can mount the bearing at any position on the shaft. When using a stepped shaft, you can use an L-shaped spacer ring to position the bearing accurately, making it easier to mount and dismount. This means that there's no need to machine the shaft seat, saving you time and effort.

• Adjustable to shaft diameter
• Suitable for use with plain or stepped shafts
• Easy to install
• Mass of 8.9 kg

Application Information

• Industrial machinery
• Conveyor belts in packaging applications
• Sliding door construction

When should I use a bearing adapter sleeve?

You'll commonly find this sleeve used for split pillow block bearing housings to lock a bearing onto the shaft. It's also a good choice when you're working with large bearings or medium-speed to high-speed applications.

Datasheet - H 3040

Rolling Bearings
