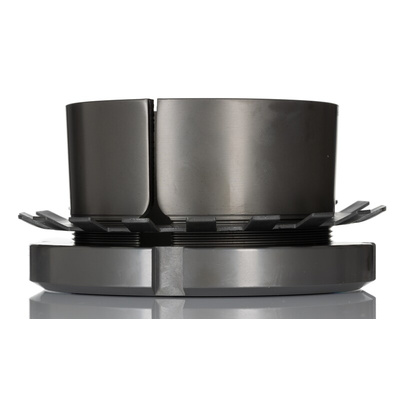

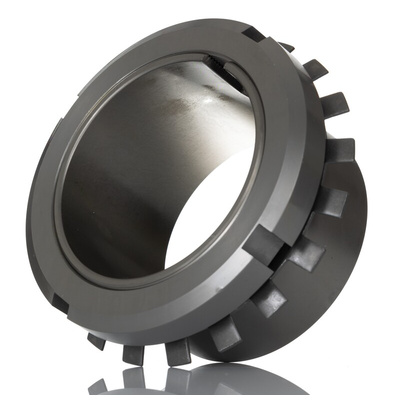

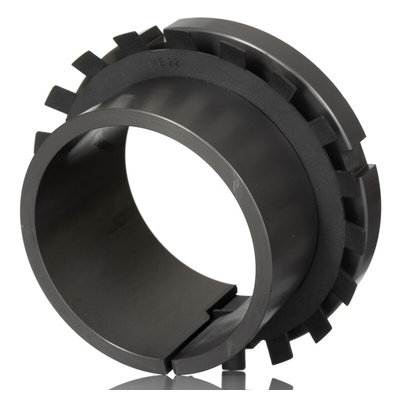

SKF Bearing Adapter Sleeve, H 322

SKF Adapter Sleeve, 100mm ID, M110x2 Thread - H 322

Looking for a simple fix to keep your bearing in place? Choose this adapter sleeve from SKF. It locates a tapered-bore bearing onto a cylindrical shaft and stops it from slipping out of position. For flexibility, you can use this component on both plain and stepped shafts. Simply place it anywhere along a bar to customise your assembly and achieve top-notch performance. The pre-machined slit makes installation a breeze – just locate the sleeve and bearing and secure it in place.

Features & Benefits

• Lock nut and washer supplied to fix the part in place
• Tips the scales at 2.26kg, so adds little weight to machinery
• M110x2 thread is widely compatible with standard fittings

Applications

• Automotive industry
• Medical systems
• Aerospace systems
• Agricultural equipment

How much space does this adapter sleeve take up on a shaft?

At only 77mm wide, this unit needs little installation space and can fit into tricky spots. Plus, with a 100mm ID and a maximum 145mm OD, it secures a bearing without adding unnecessary bulk.

When should I use an adapter sleeve?

You can use an adapter sleeve in any assembly where the inside diameter of the bearing is slightly bigger than the shaft.

Datasheet - H 322
