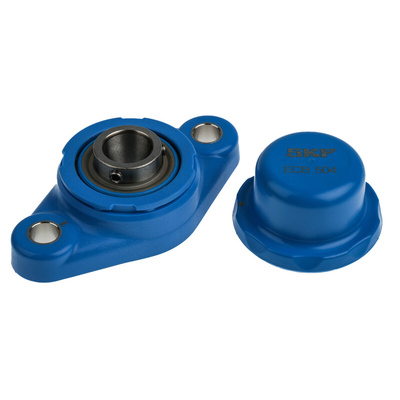

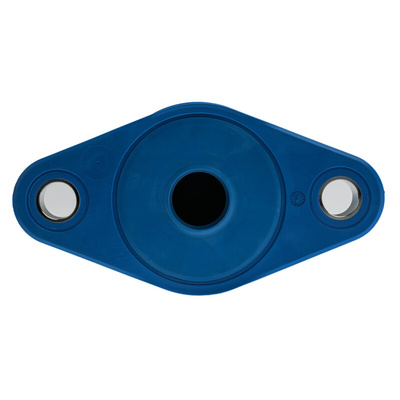

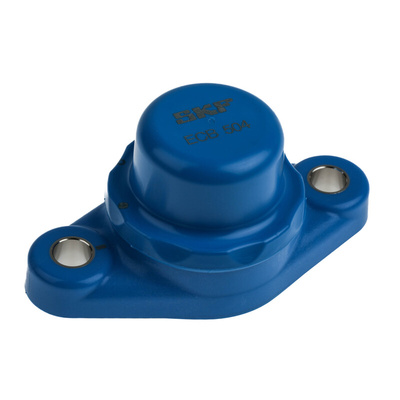

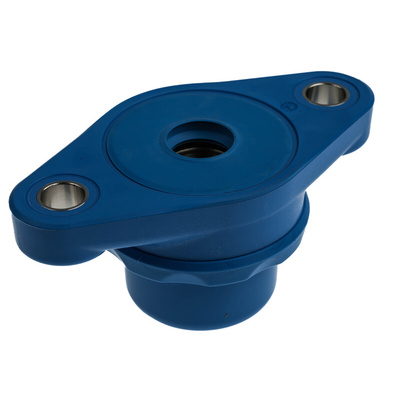

SKF 2 Hole Flange Bearing Unit, F2BC 20M-CPSS-DFH, 20mm ID

SKF Oval flanged ball bearing units, 20mm ID, 178mm length - F2BC 20M-CPSS-DFH

SKF Food Line Range oval flanged ball bearing units contain an insert bearing found in the housing that can be used and simply bolted to support the surface. This oval flanged bearing unit is made predominantly from stainless steel and the housing of the unit is made from reinforced polypropylene. This flange unit has an inside diameter of 50mm, a length of 140mm and a width of 74mm, this specific type of bearing unit has 2 mounting holes on the housing of the unit.

Features and Benefits

• Designed to be used in harsh and heavy-duty applications, therefore, they are corrosion resistant even when frequently washed down.
• SKF Food Line range bearing units are lubricated for life with a food-grade grease.
• Chemically resistant to contaminants and detergents therefore long-lasting in food and beverage applications.
• Designed with hygienic materials and features to meet food safety standards.
• Bearing unit housing is made from reinforced polypropylene which is hydrophobic making SKF Food Line Range bearings suitable for wet conditions.

Typical Applications

SKF Food Line Range oval flanged ball bearing unit is made specifically to be used in the food and beverage industry due to its hygienic design features. Specific applications of oval flanged ball bearing units include food and beverage systems.

How are oval flanged ball bearing units different from square flanged bearing units?

The main difference between oval and square flanged bearing units is that SKF oval flanged bearing units have 2 mounting holes, whereas square flanged units have 4 mounting holes. The shape of both types of bearings is also different which is apparent by the names of the bearing types.

Why choose the SKF Food Line range?

The SKF Food Line Range of ball bearings and bearing units provide high-performance products that are hygienic and durable. SKF’s Food Line Range is perfect for demanding food and beverage environments and allow you to get the best performance out of your manufacturing equipment such as industrial mixers. SKF’s Food Line Range of bearings and bearing units prevent bacteria growth and corrosion through thorough and frequent washdowns.

Food Line Range bearing units are made from reinforced polypropylene housings which ensures hygiene and safety in wet conditions. This dedicated food range was developed to address the need for hygienic bearings, they do not collect and grow bacteria and can be used safely and efficiently. SKF’s Food Line range addresses environmental concerns regarding contaminants and lubricants as this range of products offer the potential for a relubrication-free solution.

Datasheet - F2BC 20M-CPSS-DFH
