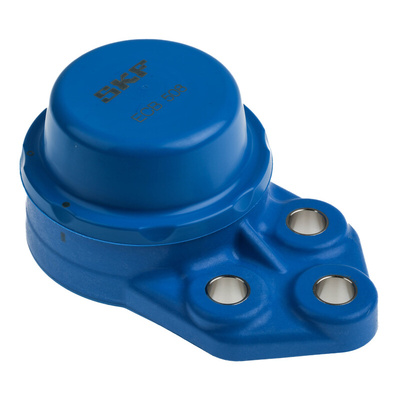

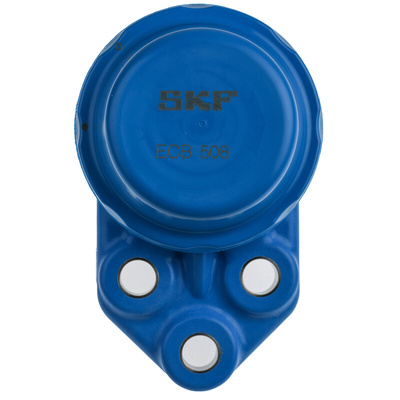

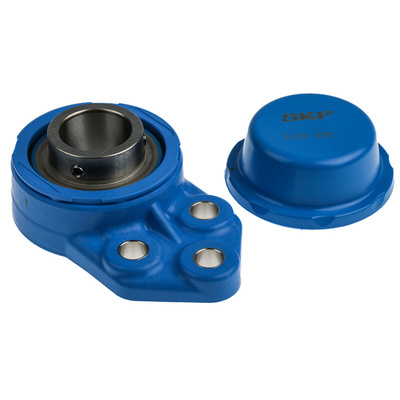

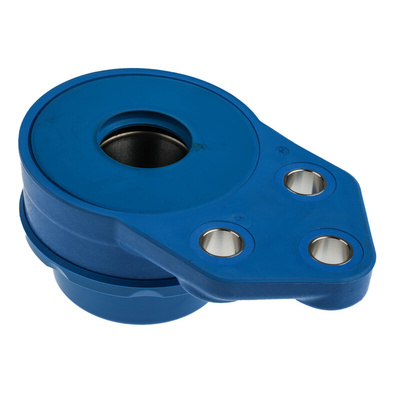

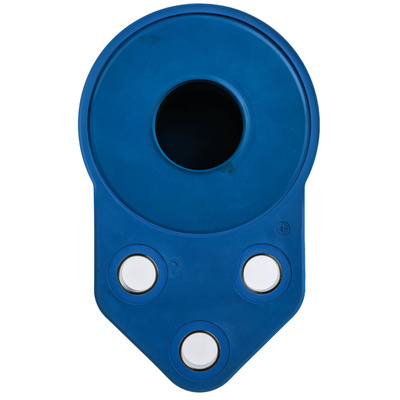

SKF 3 Hole Flange Bearing Unit, F3BBC 108-CPSS-DFH, 38.1mm ID

SKF 3-bolt bracket flanged ball bearing units, 38.1mm ID, 157mm length - F3BBC 108-CPSS-DFH

SKF’s dedicated Food Line Range bearings are made to be used in food and beverage applications as they are manufactured from food-safe materials with high sealing properties to protect the bearing from external factors. 3-bolt bracket flanged ball bearing units consist of an insert bearing that is made from stainless steel and are used to support heavy loads. This specific type of SKF flange bearing unit is housed in a reinforced polypropylene enclosure which is suitable for use in wet conditions. By using polypropylene housing, SKF ensures that their bearings perform at high levels in wet conditions, specifically within food and beverage applications.

Features and Benefits

• Back seal and gutter seals are used to lock the bearing and provide high sealing properties that protect the bearing unit from bacteria.
• SKF’s Food Line Range provide quality bearings that are food safe and suitable for use in wet conditions therefore are ideal for use in food and beverage systems.
• Insert bearings are lubricated with food-grade grease and the lubrication is made to last ensuring a relubrication-free solution.
• Strong and lightweight take-up units for efficient and effective use in rotating equipment.
• Hygienic design features such as high sealing properties make them perfectly suited for food and beverage applications.

Typical Applications

SKF Food Line Range bearings and bearing units have specifically been designed for applications within the food and beverage industry. This 3-bolt bracket flanged ball bearing unit performs effectively in wet conditions and when supporting heaving loads in equipment.

How do you mount 3-bolt bracket flanged bearing units?

3-bolt bearing units are made to be mounted and bolted to machine walls or frames to help support heavy loads. To correctly mount this bearing to a support unit 8.8 class bolts or studs are needed along with a washer and a spring washer. Do not use any auxiliary equipment to tighten any grub screws on the bearing.

Why choose the SKF Food Line range?

The SKF Food Line Range of ball bearings and bearing units provide high-performance products that are hygienic and durable. SKF’s Food Line Range is perfect for demanding food and beverage environments and allow you to get the best performance out of your manufacturing equipment such as industrial mixers. SKF’s Food Line Range of bearings and bearing units prevent bacteria growth and corrosion through thorough and frequent washdowns.

Food Line Range bearing units are made from reinforced polypropylene housings which ensures hygiene and safety in wet conditions. This dedicated food range was developed to address the need for hygienic bearings, they do not collect and grow bacteria and can be used safely and efficiently. SKF’s Food Line range addresses environmental concerns regarding contaminants and lubricants as this range of products offer the potential for a relubrication-free solution.

Datasheet - F3BBC 108-CPSS-DFH
