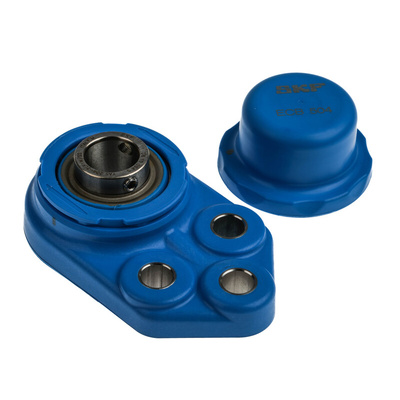

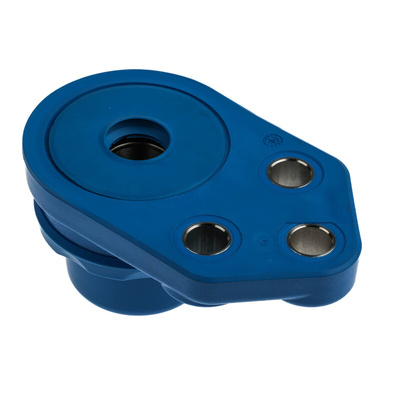

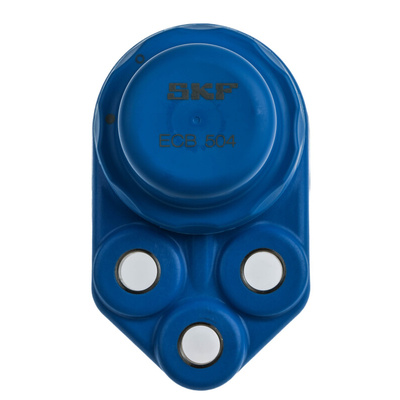

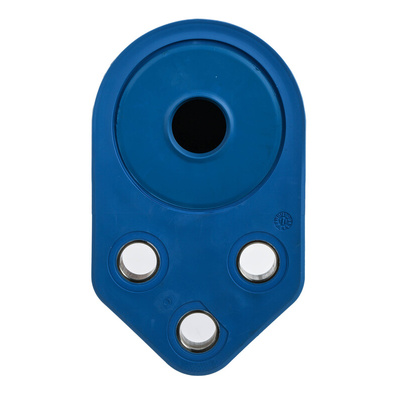

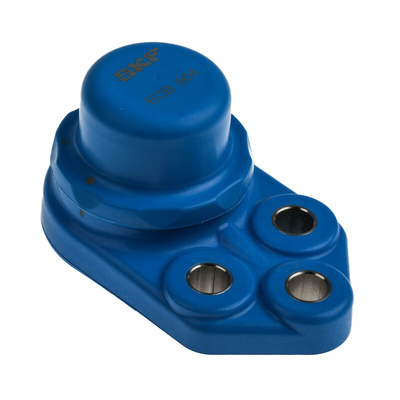

SKF 3 Hole Flange Bearing Unit, F3BBC 20M-CPSS-DFH, 20mm ID

SKF 3-bolt bracket flanged ball bearing units, 20mm ID, 157mm length- F3BBC 20M-CPSS-DFH

SKF 3-bolt bracket flanged ball bearing unit typically contains an insert bearing that is made from stainless steel. This bearing is housed in a reinforced polypropylene enclosure, making it suitable for use in wet conditions. SKF ensures that this bearing performs at high levels in wet conditions, specifically within food and beverage applications as it is designed.

Features and Benefits

• Hygienic design features make them perfectly suited for food and beverage applications.
• Insert bearings are lubricated with food-grade grease and the lubrication is made to last ensuring a relubrication-free solution.
• Strong and lightweight for efficient and effective use in rotating equipment.
• Will remain stable and hold their expected properties therefore can be used in repeated operational and washdown cycles.
• Gutter seals and a back seal with high sealing properties for better bearing protection.
• Chemically resistant and corrosion resistant to detergents and contaminants to ensure long-lasting use.

Typical Applications

SKF’s Food Line Range has specifically been designed for applications within the food and beverage industry, wet conditions and for supporting heaving loads. This 3-Bolt bracket flanged ball bearing unit has been designed by SKF to be used for food and beverage applications because of its hygienic design features.

How do you mount a 3-bolt bracket flanged bearing?

3-bolt bearing units are made to be mounted and bolted to machine walls or frames. To correctly mount this bearing to a support unit 8.8 class bolts or studs are needed along with a washer and a spring washer. Do not use any auxiliary equipment to tighten any grub screws on the bearing.

Why choose the SKF Food Line range?

The SKF Food Line Range of ball bearings and bearing units provide high-performance products that are hygienic and durable. SKF’s Food Line Range is perfect for demanding food and beverage environments and allow you to get the best performance out of your manufacturing equipment such as industrial mixers. SKF’s Food Line Range of bearings and bearing units prevent bacteria growth and corrosion through thorough and frequent washdowns.

Food Line Range bearing units are made from reinforced polypropylene housings which ensures hygiene and safety in wet conditions. This dedicated food range was developed to address the need for hygienic bearings, they do not collect and grow bacteria and can be used safely and efficiently. SKF’s Food Line range addresses environmental concerns regarding contaminants and lubricants as this range of products offer the potential for a relubrication-free solution.

Datasheet - F3BBC 20M-CPSS-DFH
