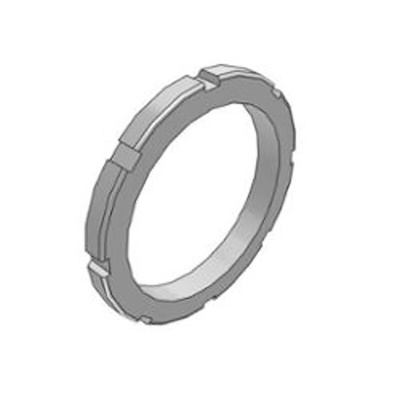

SKF Bearing Lock Nut And Locking Device 240 x 300 x 34mm For Use With MB 48, HM 48 T

SKF Bearing Lock Nut and Locking Device, 300 mm OD - HM 48 T

When you have bearings working at full force and high speed, use this bearing lock nut and locking device from SKF. It's an essential component used with bearings to ensure safe operation and optimal performance. For ease of installation and removal, it features trapezoidal threads and four equally spaced slots around its circumference to accommodate a hook or impact spanner.

• Simple, stable and reliable fastening delivers consistently high performance
• Compact outer diameter of 300 mm and thickness of 34 mm for installation in tight spaces
• Lightweight design of 5.6 kg to avoid extra bulk in your set-up
• Requires a keyway in the shaft thread to lock the clip

Application Information

• Automotive manufacture
• Agricultural industry
• Food processing
• Household appliances

Can I reuse this lock nut, or will I have to install a new one frequently?

This lock nut can be reused as long as it's not damaged, so you shouldn't have to install a new nut very often. A new lock washer should be used each time the lock nut is installed.
