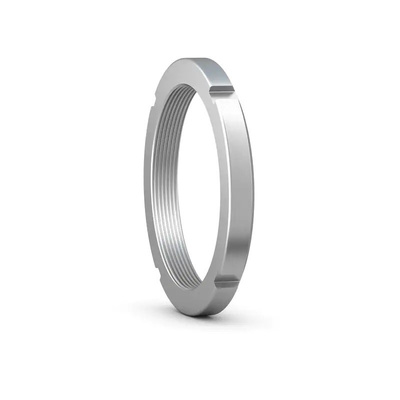

SKF Bearing Lock Nut And Locking Device 150 x 137 x 19mm, KM 23

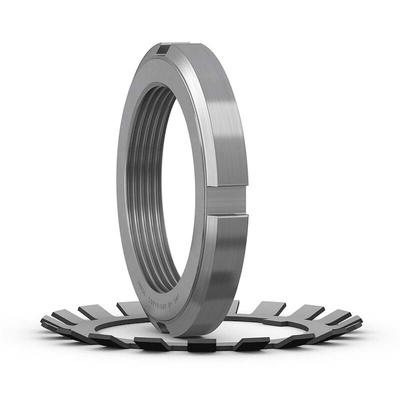

SKF Bearing Assembly, Washer Included, M115x2 Thread Size - KM 23

Keep your system on a steady footing with this SKF bearing assembly. It can be popped onto a shaft in front of your bearing to clamp down on disruptive movement. Tightening the product is easy, as it comes with four hook spanner slots to help you get a good grip during mounting. An included washer means the assembly is ready to mount onto your hardware straight away. As the lock nut carries axial static loads up to 315kN, you can be sure your heavy-duty processes are in safe hands.

Features & Benefits

• Industry-standard M115 thread means it's widely compatible with common machinery
• Lock nut is reusable to help reduce component waste
• Compact width of 19mm, helping fit right in on busy shafts
• Handles between 0.02 and 0.06mm of axial run-out to keep working through small misalignment errors

Applications

• Industrial automation
• Packing plants
• Automotive industry

How do I attach the assembly's washer to its lock nut?

This product's washer comes with flexible tabs that bend to slot into the lock nut, making it easy to secure them in place.

Datasheet - KM 23
