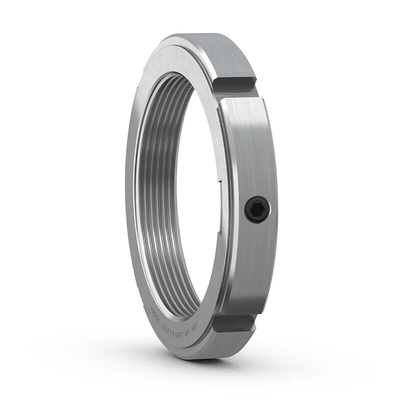

SKF Bearing Lock Nut And Locking Device 45mm, KMK 9

SKF Bearing Assembly, Lock Nut Type, 45mm ID, 65mm OD - KMK 9

Keep your rotating machine component stable with this bearing assembly from SKF. It's a lock nut that's designed to fasten a bearing in a radial position to its housing or on a shaft. This is essential to keep machine elements steady without the risk of shifting in vibrating conditions. Thanks to its simple threaded structure, you'll find it a cinch to mount the nut without power tools. External dimensions of 45mm ID and 65mm OD make this lock nut just the right fit for bearings of a small to medium size.

Features & Benefits

• Keyway-free operation for quick mounting
• Threaded steel insert in the nut's bore boosts support for set screw installation
• Reusable, if it's removed undamaged, to minimise waste

Applications

• Agricultural equipment
• Oil and gas industry
• Packaging facilities
• Automotive engineering

What's the load capacity of this bearing assembly?

The unit has an axial static load carrying capacity of 78kN to withstand heavy loads on the shaft without deforming.

Do I need any tools to tighten the lock nut?

Yes, you'll need a standard hook spanner (204-4541) to set this product tight to your bearing.

Datasheet - KMK 9

Catalogue - Rolling Bearings
