SKF Bearing Housing, SHT 30

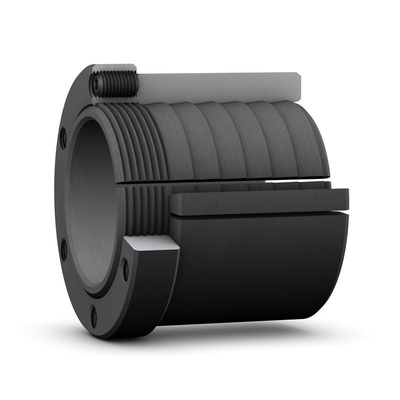

SKF Bearing Assembly, Mechanical Joint, 30mm ID, 55mm OD - SHT 30

Lock your components in place with this bearing housing from SKF. It uses pressure and friction to ensure a secure attachment between a shaft and other parts. The bushing's compact inside diameter of 30mm and outside diameter of 55mm mean it's ideal for installation in areas where space is limited. It's simple to mount using locking screws, eliminating the need for specialised tools. Thanks to its mechanical operation, expansion occurs equally across the entire surface of the unit, reducing the risk of buckling and supporting efficient performance.

• Axial load rating of 35kN to support heavy loads
• Maximum torque of 525Nm to withstand high rotational force
• Compatible with existing shafts for easy replacement of old keyways

Applications

• Food processing plants
• Material handling equipment
• Industrial motors
• Printing industry

Why should I use this type of bushing instead of a keyway?

A traditional keyway must be cut into a shaft, which reduces the integrity and durability of your parts. This bushing helps to maintain the strength of your shaft to ensure long-term performance.

Datasheet - SHT 30
