SKF 2 Hole Flange Bearing Unit, F2BC 108-CPSS-DFH, 38.1mm ID

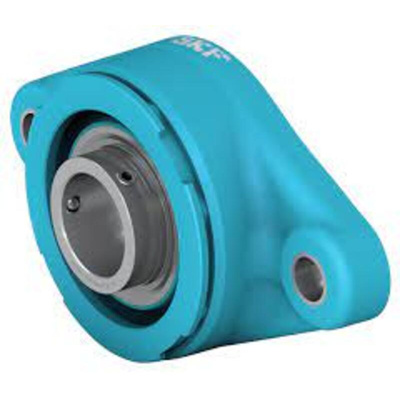

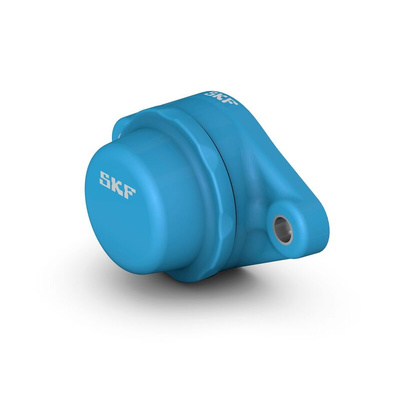

SKF Oval flanged ball bearing unit, 38.1mm ID, 178mm length - F2BC 108-CPSS-DFH

SKF’s Food Line Range bearings are made to be used in food and beverage applications as they are manufactured from food-safe materials with high sealing properties to protect the bearing from external factors. Oval flanged ball bearing units contain an insert bearing found in the housing that can be used and simply bolted to support the surface. This oval flanged bearing is made from stainless steel with a reinforced polypropylene housing.

Features and Benefits

• SKF Food Line Range flange bearing units have high sealing properties to protect the bearing from contamination.
• Designed to be used in harsh and heavy-duty applications, therefore, they are corrosion resistant even when frequently washed down.
• SKF Food Line range bearing units are lubricated for life with a food-safe grease, a relubrication-free solution.
• Chemically resistant to contaminants and detergents therefore long-lasting in food and beverage applications.
• Stainless steel bearing and reinforced polypropylene housing features to meet food safety standards.
• 2 bolt mounting holes for easy installation and mounting to machine walls or frames.

Typical Applications

Specific applications of oval flanged ball bearing units include food and beverage packaging and processing systems. SKF Food Line Range flange bearing units are specifically designed to be used in the food and beverage industry because of their hygienic design features and food-safe materials.

Are oval flange bearing units and square flanged bearing units the same?

The main difference between oval and square flanged bearing units is how the bearing units are mounted. SKF oval flanged bearing units have 2 bolt mounting holes, whereas square flanged units have 4 bolt mounting holes, so they are ideal for different applications and spaces.

Why choose the SKF Food Line range?

The SKF Food Line Range of ball bearings and bearing units provide high-performance products that are hygienic and durable. SKF’s Food Line Range is perfect for demanding food and beverage environments and allow you to get the best performance out of your manufacturing equipment such as industrial mixers. SKF’s Food Line Range of bearings and bearing units prevent bacteria growth and corrosion through thorough and frequent washdowns.

Food Line Range bearing units are made from reinforced polypropylene housings which ensures hygiene and safety in wet conditions. This dedicated food range was developed to address the need for hygienic bearings, they do not collect and grow bacteria and can be used safely and efficiently. SKF’s Food Line range addresses environmental concerns regarding contaminants and lubricants as this range of products offer the potential for a relubrication-free solution.

Datasheet - F2BC 108-CPSS-DFH
