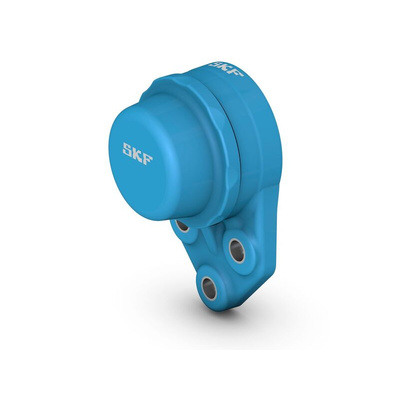

SKF 3 Hole Flange Bearing Unit, F3BBC 100-CPSS-DFH, 25.4mm ID

SKF 3-bolt bracket flanged ball bearing units, 25.4mm ID, 155mm length - F3BBC 100-CPSS-DFH

3-bolt bracket flanged ball bearing units typically consist of an insert bearing that is made from stainless steel. This bearing is housed in a reinforced polypropylene enclosure, making it suitable for use in wet conditions. By using polypropylene housing, SKF ensures that this bearing performs at high levels in wet conditions, specifically within food and beverage applications.

Features and Benefits

• Chemically resistant and corrosion resistant to detergents and contaminants to ensure long-lasting use.
• Insert bearings are lubricated with food-grade grease and the lubrication is made to last ensuring a relubrication-free solution.
• Strong and lightweight for efficient and effective use in rotating equipment.
• Will remain stable and hold their expected properties therefore can be used in repeated operational and washdown cycles.
• Hygienic design features make them perfectly suited for food and beverage applications.

Typical Applications

This dedicated SKF Food Line Range has specifically been designed for applications within the food and beverage industry, wet conditions and for supporting heaving loads.

How do you seal an SKF 3-bolt bracket flanged ball bearing unit?

SKF 3-bolt bracket flanged ball bearing units use both a back seal and gutter seals to provide high sealing properties. SKF Food Line Range bearings use this combination of seals and inner rings in the bearing unit to lock the device to easily mount the unit.

Why choose the SKF Food Line range?

The SKF Food Line Range of ball bearings and bearing units provide high-performance products that are hygienic and durable. SKF’s Food Line Range is perfect for demanding food and beverage environments and allow you to get the best performance out of your manufacturing equipment such as industrial mixers. SKF’s Food Line Range of bearings and bearing units prevent bacteria growth and corrosion through thorough and frequent washdowns.

Food Line Range bearing units are made from reinforced polypropylene housings which ensures hygiene and safety in wet conditions. This dedicated food range was developed to address the need for hygienic bearings, they do not collect and grow bacteria and can be used safely and efficiently. SKF’s Food Line range addresses environmental concerns regarding contaminants and lubricants as this range of products offer the potential for a relubrication-free solution.

Datasheet - F3BBC 100-CPSS-DFH
