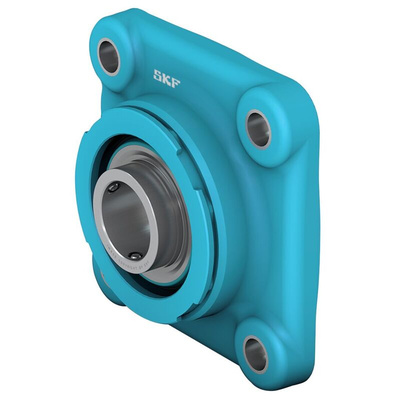

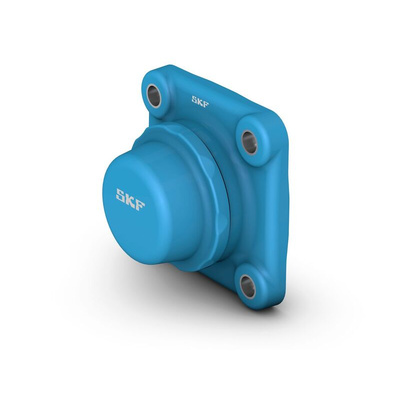

SKF 4 Hole Flange Bearing Unit, F4BC 100-CPSS-DFH, 25.4mm ID

SKF Square flanged ball bearing unit, 25mm ID, 99mm length - F4BC 100-CPSS-DFH

SKF Food Line Range square flanged bearing units consists of an insert bearing that is contained in a reinforced polypropylene housing. This specific bearing is made from stainless steel with an inside diameter of 25mm and a length of 99mm. This stainless steel housing unit is corrosion-resistant to ensure long-lasting use in wet environments due to its hydrophobic qualities.

Features and Benefits

• Housings are made from reinforced polypropylene which is a hydrophobic material making them reliable bearings to use in wet environments.
• 4 mounting holes to provide effective and long-lasting surface mounting.
• Strong and lightweight for efficient and effective use in rotating equipment.
• Will remain stable and hold their expected properties therefore can be used in repeated operational and washdown cycles.
• Resistant to chemical detergents and contaminants to ensure long-lasting use.
• Hygienic design features make them perfectly suited for food and beverage applications.

Typical Applications

These SKF square flanged ball bearing units are designed and made specifically for use within food and beverage applications, such as food packaging and industrial mixers.

What can cause a bearing failure?

• Misalignment
• Unbalance
• Looseness
• Friction

However, this damage can highlight and identify any issue and can establish a root cause of the damage. This indication has the potential to prevent recurrence if the damage is corrected.

Why choose the SKF Food Line range?

The SKF Food Line Range of ball bearings and bearing units provide high-performance products that are hygienic and durable. SKF’s Food Line Range is perfect for demanding food and beverage environments and allow you to get the best performance out of your manufacturing equipment such as industrial mixers. SKF’s Food Line Range of bearings and bearing units prevent bacteria growth and corrosion through thorough and frequent washdowns.

Food Line Range bearing units are made from reinforced polypropylene housings which ensures hygiene and safety in wet conditions. This dedicated food range was developed to address the need for hygienic bearings, they do not collect and grow bacteria and can be used safely and efficiently. SKF’s Food Line range addresses environmental concerns regarding contaminants and lubricants as this range of products offer the potential for a relubrication-free solution.

Datasheet - F4BC 100-CPSS-DFH
