RS PRO Soft Starter, Soft Start, 5.5 kW, 400 V ac, 3 Phase, IP20, Устройство плавного пуска

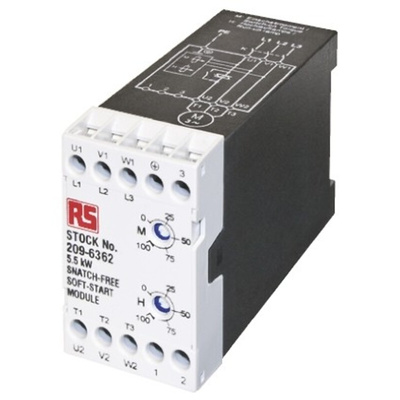

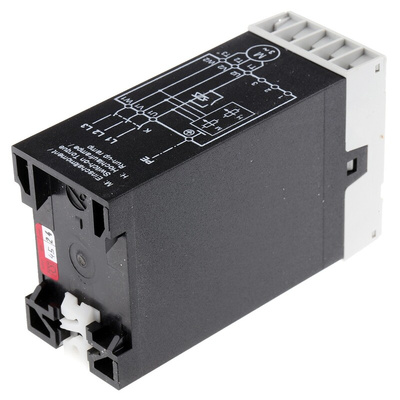

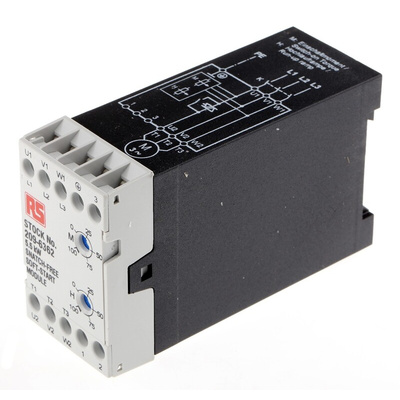

RS PRO 5.5 kW Soft Starter, 460 V AC, Three Phase, IP20

Easily stop and start your three-phase motor with this 5.5 kW soft starter from the RS PRO range. It works by regulating one phase of the energy supply during ramp-up and increasing currents in the two non-controlled phases to reduce starting torque. This soft starter is often found in industrial settings.

Easy to install, it can be mounted on a DIN (Deutsche Institut für Normung) rail and linked with an electronic injection brake module to create a complete motor control system. The soft starter has a voltage rating of 460 V and a power rating of 5.5 kW.

As it is IP20 rated so it can be touched by your fingers during installation. Guaranteeing smooth operation, it is commonly used in food production lines to help prevent damage to products if a line stops suddenly. It also lessens the need to maintain gearboxes, belts and chain drives.

Features and Benefits

• Soft starter
• DIN (Deutsche Institut für Normung, or the German Institute of Standardisation) rail mounted
• IP20 rated so you can touch with fingers
• Dimensions of (L) 120 mm x (D) 75 mm x (W) 45 mm
• Voltage rating of 460 V AC
• Power rating of 5.5 kW
• Supply voltage of 380 V AC to 460 V AC
• Operates from 0°C to +40°C
• Current rating of 12 A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Installation Instruction Manual

RS PRO Datasheet

RS PRO Instruction
