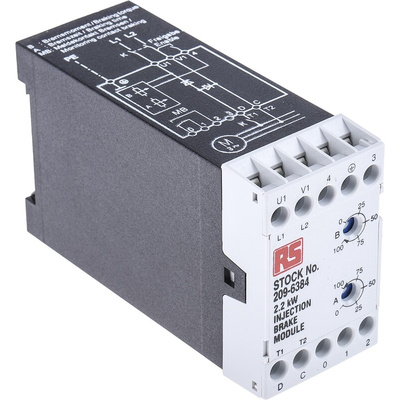

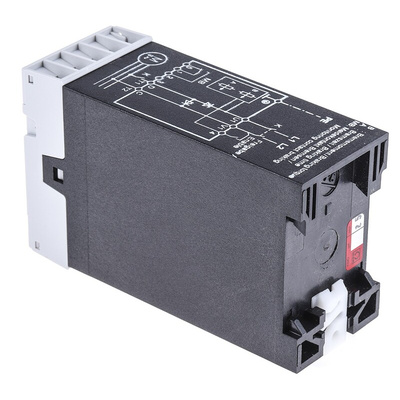

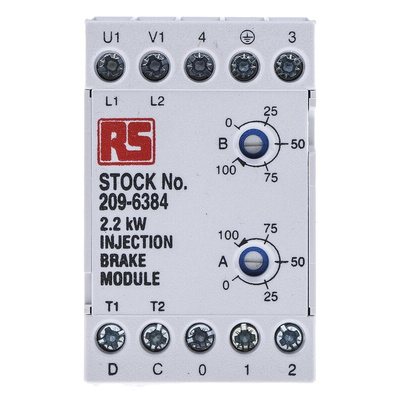

RS PRO 3 Phase Brake Module, 2.2 kW, 380 → 415 V ac

RS PRO Three Phase Brake Module, 2.2 kW, 380 V to 415 V AC

Efficiently bring your machine to a controlled stop with this three-phase brake module from the RS PRO range. By injecting direct current into your AC motor's winding, the module neutralises the electromagnetic field and the motor stops rotating. This braking module is often found in industrial settings such as workshops and factories.

An injection braking system is commonly used as an alternative to a friction braking system. With adjustable braking times and torques, you can optimise performance to fit the needs of your equipment. Generally, braking function will start within 0.6 seconds. The small brake module mounts onto a 35 mm symmetrical DIN (Deutsche Institut für Normung or German Institute of Standardisation) rail.

Please note, this brake module is designed for use as a production brake and should not be used in emergency situations. It's suitable for use with slow-stopping equipment, such as rolling mills or mechanical saws.

Features and Benefits

• Three-phase brake module
• Includes a starter
• Power rating of 2.2 kW
• Supply voltage of 380 to 415 V AC
• Response time of 0.6 seconds
• Braking torque
• RoHS compliant for minimal use of hazardous materials
• Packed in conditions that meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic control standards
• Supplied with instruction leaflet

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Electronic injection brakes in modules housings

Instruction sheet

RS PRO Datasheet

RS PRO Instruction
