RS PRO Stainless Steel External Circlip, 8mm Shaft Diameter, 7.6mm Groove Diameter, Стопорное кольцо

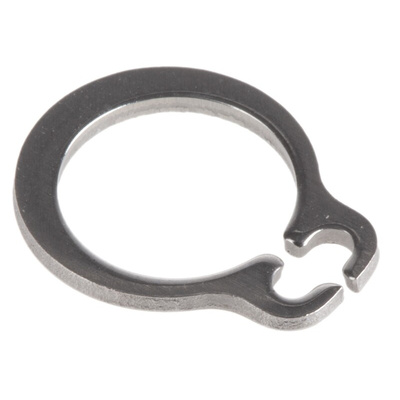

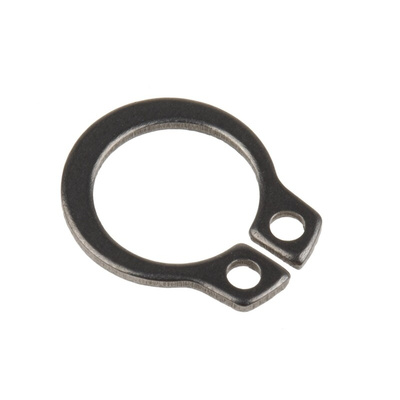

RS PRO Stainless Steel External Circlip, 8 mm Shaft Diameter, 7.6 mm Groove Diameter

When you need to securely fix a mechanical component to a shaft, use these RS PRO external circlips. They'll hold a part firmly in place without inhibiting its continuous rotational force.


The rings are supplied in packs of 100 and come in a durable storage compartment to help with organisation. They're easy to install and remove using RS PRO circlip pliers. They fit into a groove on the outside of the shaft that helps to retain it and keep it secure against high rotational speeds.


Thanks to their stainless steel material, these circlips are corrosion-resistant and well-suited for outdoor use. You'll often find these retaining rings used in applications involving turning parts, from roller bearings to wind turbines.

Features and Benefits

• External circlip type


• Fits groove diameters of 7.6 mm


• For shaft diameters of 8 mm


• Made of stainless steel


• Outside ring diameter of 14.7 mm


• Ring thickness of 0.8 mm


• Conforms to the dimensions specified in DIN 471 (BSC SF 14) and BS3673 standards
