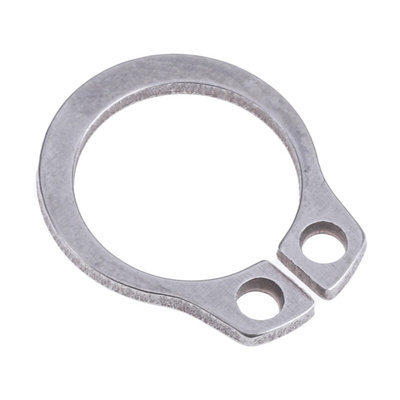

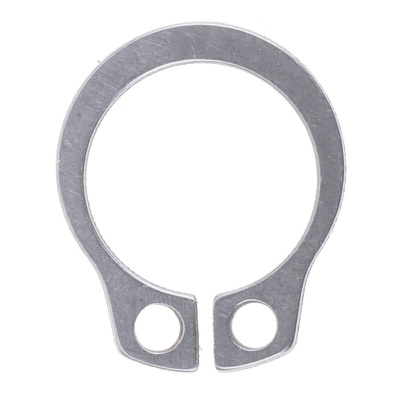

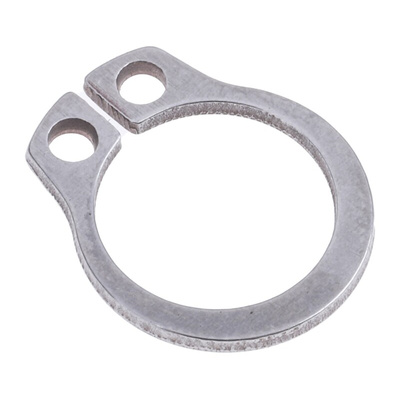

RS PRO Stainless Steel External Circlip, 10mm Shaft Diameter, 9.6mm Groove Diameter, Стопорное кольцо

RS PRO Stainless Steel External Circlip, 10 mm Shaft Diameter, 9.6 mm Groove Diameter

These space-saving external circlips fit snugly around shaft or bore components, letting you use them as an alternative to bulky fastener assemblies. Simply insert the tips into an RS external circlips plier, squeeze the handles to open up the ends and fit over the shaft groove to complete the installation.

The circlips are designed to conform to dimensions specified in DIN 471 (BSC SF 14) and BS3673 standards. They are compatible for use with 10 mm shafts and 9.6 mm groove diameters. Semi-flexible stainless-steel construction allows for easy installation and removal, while also delivering durability.

Part of the RS PRO range, these circlips undergo rigorous testing for quality and reliability before receiving the RS stamp of approval. They're used to replace parts from threaded sleeves, rivets and cotter pins to set collars and nuts.

Features and Benefits

• External open-ended circlips
• For use with 10 mm shafts
• Fits to 9.6 mm groove diameter
• Ring thickness of 1 mm
• Outside ring diameter of 17 mm
• Tough and durable stainless steel construction
• Conforms to dimensions specified in DIN 471 (BSC SF 14) and BS3673 standards
