RS PRO Stainless Steel External Circlip, 20mm Shaft Diameter, 19mm Groove Diameter, Стопорное кольцо

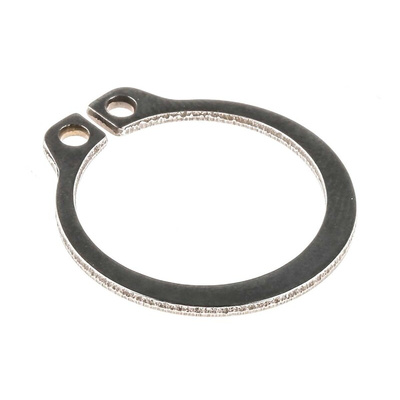

RS PRO Stainless Steel External Circlip, 20 mm Shaft Diameter, 19 mm Groove Diameter

External clips are used as substitutes to threaded sleeves, rivets and cotter pins to set collars and nuts. Instead of using bulky fasteners, these circlips can be used to sit flush around shaft or bore components. These particular clips from the RS PRO series are compatible with 20 mm shafts and 19 mm groove diameters.

They're easy to use, requiring only an RS PRO external circlips plier to open up the ends. Just put the tips of the circlips into the pliers and simply push to open. They can then be placed over a shaft groove. As they're constructed from semi-flexible stainless-steel, they are both easy to install and remove.

These circlips undergo testing for quality and reliability before receiving the RS stamp of approval. The circlips are conformed to dimensions specified in DIN (Deutsches Institut für Normung, the German Institute of Standardisation) 471 (BSC SF 14) and BS3673 standards.

Features and Benefits

• External open-ended circlips
• For use with 20 mm shafts
• Fits to 19 mm groove diameter
• Ring thickness of 1.2 mm
• Outside ring diameter of 28.4 mm
• Tough and durable stainless steel construction
• Conforms to dimensions specified in DIN 471 (BSC SF 14) and BS3673 standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
