RS PRO Stainless Steel External Circlip, 25mm Shaft Diameter, 23.9mm Groove Diameter, Стопорное кольцо

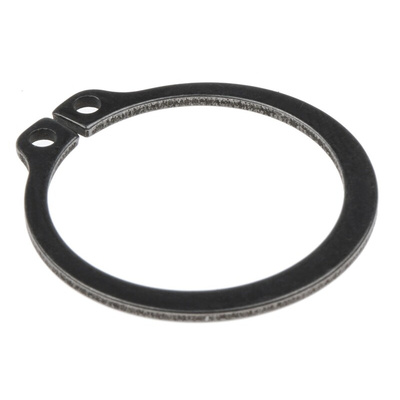

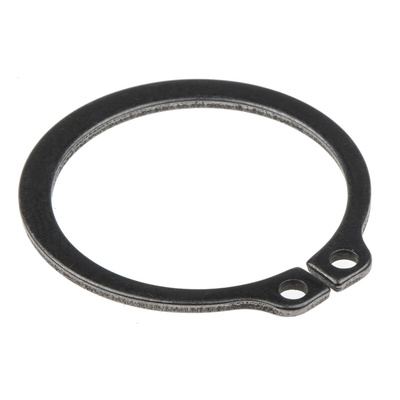

RS PRO Stainless Steel External Circlip, 25 mm Shaft Diameter, 23.9 mm Groove Diameter

These compact external circlips from the RS PRO range are used as substitute parts for threaded sleeves, rivets and cotter pins to set collars and nuts.

They're used as replacements for bulky fastener assemblies as they fit flush around bore or shaft components. Just put the tips of the circlip into an RS PRO external circlips plier then push the handles in order to open up up the ends and place over a shaft groove. They're crafted from semi-flexible stainless-steel that ensures they are easy to install or remove.

Part of the RS PRO range, these circlips undergo stringent testing for quality and reliability before receiving the RS stamp of approval. The circlips conform to dimensions specified in DIN (Deutsches Institut für Normung, the German Institute of Standardisation) 471 (BSC SF 14) and BS3673 standards. They're compatible for use with 25 mm shafts and 23.9 mm groove diameters.

Features and Benefits

• External open-ended circlips
• For use with 25 mm shafts
• Fits to 23.9 mm groove diameter
• Ring thickness of 1.2 mm
• Outside ring diameter of 34.2 mm
• Tough and durable stainless steel construction
• Conforms to dimensions specified in DIN (Deutsches Institut für Normung, the German Institute of Standardisation) 471 (BSC SF 14) and BS3673 standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
