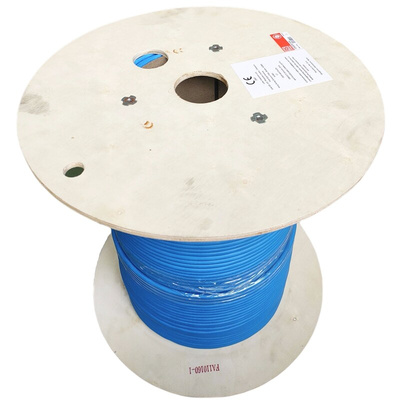

RS PRO Cat6 Ethernet Cable, F/UTP, Blue LSZH Sheath, 500m, Low Smoke Zero Halogen (LSZH)

RS PRO Cat6 F/UTP Cable

Category 6 or Cat6 cable for short is the 6th generation of twisted pair Ethernet cabling that is widely used in both business and home network installations. It is commonly known as network cable, LAN, or Ethernet cable. It consists of 4 twisted pairs of sheathed copper wire cables, able to support a high data transfer.

This Cat6 cable reel has foil twisted pairs (F/UTP) networking cables, which means the copper wires are twisted together and covered overall with a foil shield which helps to reduce crosstalk, as well as any electromagnetic interference.

Why would you choose this UTP cable?

Our Cat6 cables are Low Smoke Zero Halogen, commonly termed as LSZH or LSOH cables are used where smoke emission and toxic fumes could cause harm to human health, as well as to essential equipment in the event of a fire. LSZH cables have an outer sheath material that produces lower levels of smoke and toxic fumes, and no acid gases. These are particularly beneficial to personnel exiting safely during a fire, as well as increasing the safety of the firefighting operation.

Features and Benefits

• Blue in colour


• Foil cable shielding with unshielded twisted pairs (F/UTP) network cable


• 24 AWG


• 500 m in length


• Low Smoke Zero Halogen sheathed data cable


• High speed and performance of data transmission


• Cat6 cables are backward compatible, they interact with older data and systems


• Reduced crosstalk and noise levels

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards and given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

FAQ’s

Do I need a screened or unscreened cable?
Screened cables feature an outer cover that has been directly forced above the insulation and are ideal for electrical applications that produce low frequencies. Unscreened cables provide sufficient protection and high performance whilst remaining a cost-effective solution. If you need a cable for high-frequency application’s then a screened cable would be more suitable.

What is a multicore industrial cable?
Multicore cable is a type of electrical cable which includes more cores than a standard power or coaxial cable. They can be supplied in various lengths and the number of cores can vary significantly, depending on the type of application required. Commonly used within industrial or entertainment applications, they can keep otherwise messy and disorganised cable connections tidy and are a cost-effective solution.

Applications

• RJ45 Connectors


• Home and office computer networks
