Tektronix P6243 Oscilloscope Probe, Active Type, 1GHz, 1:10, BNC Connector, Щупы для осциллографа

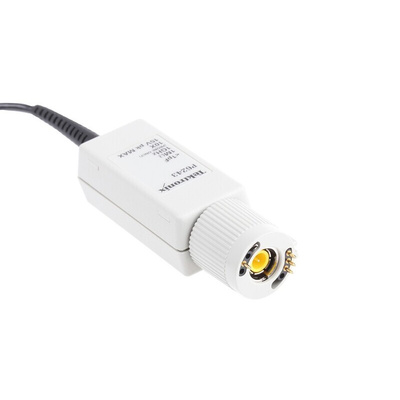

P6243 Active Probe for SMDs

The P6243 active FET probe is the high performance probing solution for 500 MHz oscilloscopes. Complete with a probe-only bandwidth of 1 GHz, it will provide a 500 MHz system bandwidth when used with the Tektronix full line of 500 MHz oscilloscopes. The probe is powered by the TekProbe BNC interface, eliminating the need for additional power supplies and cables when used with TekProbe BNC oscilloscopes. It offers superior signal acquisition on surface mount devices compared to the much higher capacitive loading of passive probes. The included accessories and adapters allow for easy attachment to SMDs.

1 GHz Bandwidth (probe only)
≤pf Input Capacitance
1MΩ Input Resistance
Direct access to SMDs as small as 0.5mm pitch
Measures CMOS, BiCMOS, ECL, GaAs and TTL Logic
Low mass probe head/cable
Small compact probe head and versatile attachment accessories allow direct connection to the device under test
Provides scope bandwidth at the probe tip for the TDS3000 series scope up to 1 GHz bandwidth

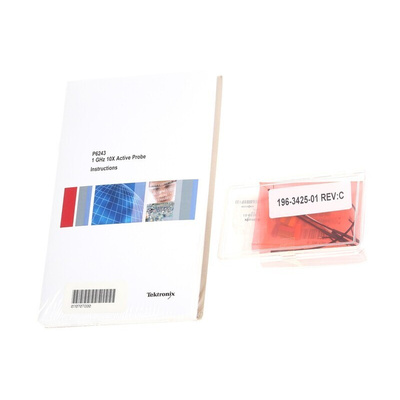

Supplied with

Solderable probe tips (10), 1 inch ground lead (2), 3 inch ground lead (1), 6 inch ground lead (1), Y lead adapter (1), SMT KlipChip adapter (2), colour-coding clips, 2 each, 5 colours (1 set), right angle square pin adapter (1), 100 Mil square pin adapter (1)
