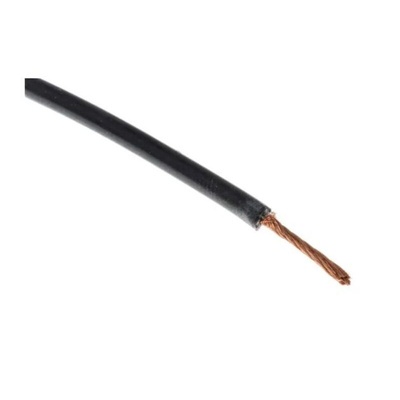

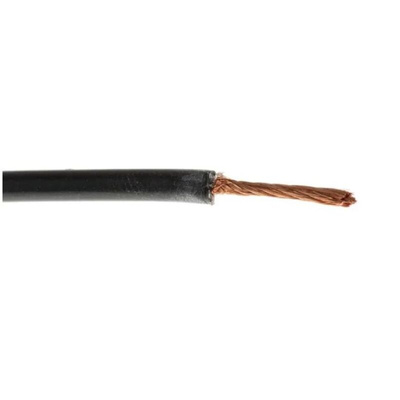

RS PRO Black 1.1 mm² Hook Up Wire, 17 AWG, 516/0.05 mm, 100m, Silicone Rubber Insulation

RS PRO Hook Up Wire - 17 AWG

Our RS PRO range of hook up wires keeps on improving. We are pleased to introduce a new series of flexible hook-up wire perfect for internal wiring and electrical cable applications. These electrical hook-up wires are supplied on a reel with red or black insulated sheaths, and available in 100-metre length.
Upon inspection the cables are solid, extremely robust, core strands are made from copper and have a voltage rating of 600 V. The equipment wires are protected with insulation made from high-quality silicone rubber ensuring the cables are reliable and meet the criteria for installation.

What is a hook-up wire?

Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low or high voltage applications. Copper strands are insulated and act as the conductor of electricity to power its target.

What is hook up wire used for?

These type of hook-up wires are frequently found within the everyday household and workplace appliances. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals.

Features and Benefits

• Voltage rating 600 V
• Operating temperature -50 to 200°C
• Core Strands: 516/0.05 mm
• Copper conductor wire - 17 AWG (American Wire Gauge)
• Insulated with silicone rubber

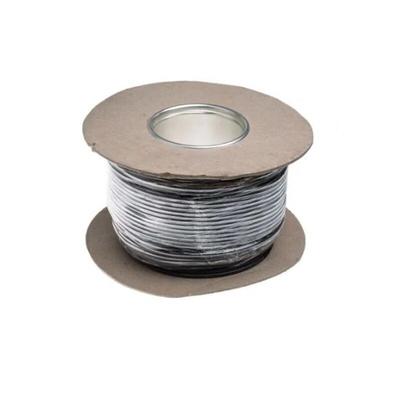

• Supplied on a reel
• UL 3289 Standard

RS Pro Hook-Up Wire Cable Options – 17 AWG

• 100 Metre Reel, Black, RS stock no: 209-8056
• 100 Metre Reel, Red, RS stock no: 209-8057

Applications

Hook up wire can be used for a broad range of equipment that includes;

• Control cabinet
• High-temperature oven
• Specialised machine tool

Why would you choose RS PRO for Hook-Up Wires?

Our extensive range ensures we have your ideal solution available. Browsing our offer has vastly improved making it simple to select your hook up wire of choice. Our products are supported with technical information and customer service we are sure you will appreciate.
