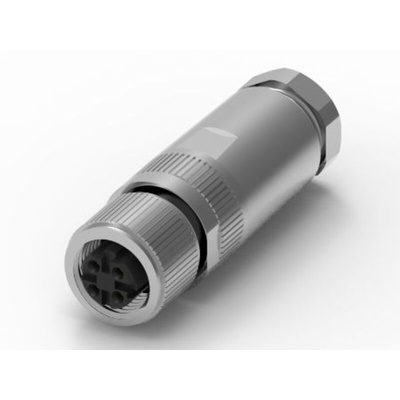

RS PRO 4 Pole M12 Din, 4A, 250 V IP67, Screw Lock, Female, Cable Mount

RS PRO Female Cable Mount DIN Connectors – M12

RS PRO are pleased to introduce our M12 female cable mount DIN connector. Made from high-quality materials, available with 4 pole terminations, plus a clever screw lock design feature that ensures once mated with a male socket connector there is no accidental disconnection.

Application is quick and easy, assembly of these cable mount connectors can be carried out by both engineers or DIY enthusiasts. Simply disassemble the DIN jack to gain access to the contact pins, solder the required wire connectors, secure the strain relief, and re-assemble.

Why would you need a DIN connector?

These circular DIN connectors are perfect for replacing old, damaged connector plug jacks or for making custom length cable plugs for an audio system. These DIN type connectors are compatible with panel mount and chassis mount socket connectors and are excellent for audio signals, serial, and data while offering long service and ease of use.

Features and Benefits

• Mounting type: Cable Mount
• Connector size: M12 D-Code
• Number of poles: 4
• Termination Method: Solder
• Body Orientation: Straight
• Connector type: Female DIN connector plug
• Mating type: Screw Lock
• Cable Outlet: 7.5 mm

Materials

• Housing: UL94V-0 black
• Shell: Aluminium Alloy
• Nut: Aluminium Alloy
• Contacts: Brass Gold flash plated
• Finish: Nickel Plated

Specification

• Current Rating: 4A
• Voltage Rating: 250 V
• IP Rating: IP67

Applications

Control engineering
Automation technology
Medical instrumentation
Electronic audio equipment

Why would you choose RS PRO for DIN connectors?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
