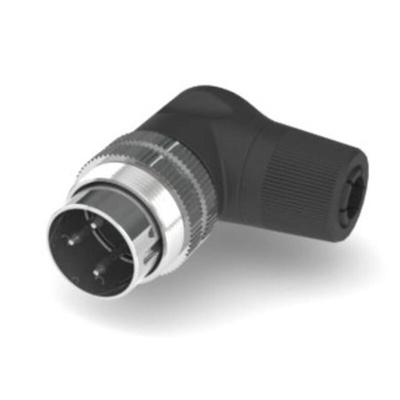

RS PRO 3 Pole Right Angle M16 Din, 4A, 100 V IP40, Screw Lock, Male, Cable Mount

RS PRO Male Cable Mount DIN Connectors – Right Angle

Looking for cable mount connectors then consider RS PRO for all your DIN connectors solutions. We are pleased to introduce this excellent high-quality male right angle cable mount DIN connector. Upon inspection, it’s made from top quality material with a premium feel. This connector offers a screw lock system that once connected to a female panel or chassis mount socket remains securely in place and resistant to accidental disconnection, perfect for a custom arrangement.

Assembly

Assembly with this plug connector is relatively straight forward, engineers or DIY enthusiasts can carry out this process. The process includes; disassembling the connector to locate the terminal pins, soldering the cable wires, securing the cable, and reassemble the parts. The beauty of this DIN connector plug is it provides protection to cable bending stress, and you can make your own custom cable lengths to suit your application.

Why would you need a DIN connector?

Circular DIN connectors are perfect for replacing old, damaged connector plug jacks or for making custom connector plugs for an audio system. These DIN type connectors are compatible with panel mount and chassis mount socket connectors and are excellent for audio signals, serial, and data.

Features and Benefits

• Mounting type: Cable Mount
• Connector size: M16
• Number of poles: 3
• Termination Method: Solder
• Body Orientation: Right Angle
• Connector type: Male DIN connector plug
• Screw Locking

Materials

• Shell cover: PA6
• Screw cap: PA6
• Shield cover: Steel nickel-plated
• O ring: Brass nickel plated
• Housing: ABS
• Terminals: Brass, silver plated

Specification

• Voltage Rating: 100 V
• Current Rating: 4A
• Contact Resistance: Pins 30 mΩ max., Shell 50 mΩ max.
• Insulation Resistance: 100MΩ at 500V DC min.
• IP Rating: IP40

Applications

Control engineering
Automation technology
Medical instrumentation
Electronic Audio equipment

Why would you choose RS PRO for DIN connectors?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
