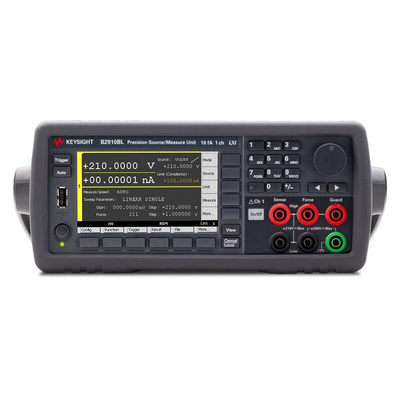

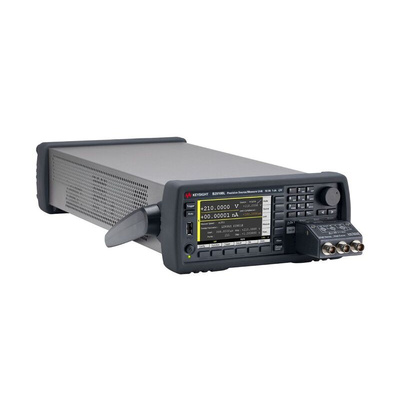

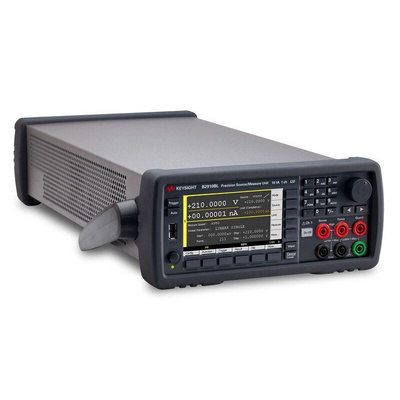

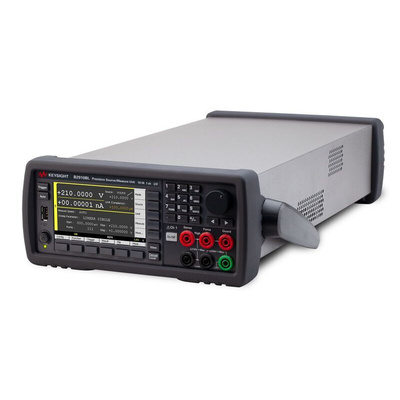

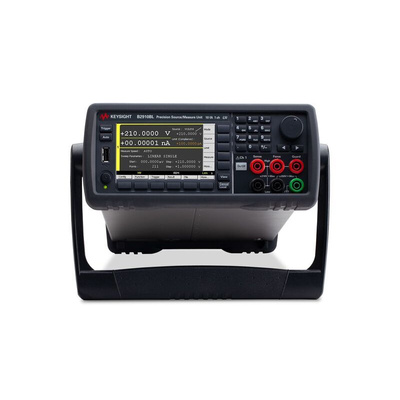

B2910BL, Keysight Technologies B2900BL Series Source Meter, 1 μV → 210 V, 1-Channel, 31.8 W Output

Keysight Technologies Source Meter, 2Ω to 200MΩ Resistance Measurement Range, 6kg Weight - B2900BL Series - B2910BL

Need a way to pinpoint electrical values? Pick this source meter from Keysight Technologies. It accurately gathers and measures voltages and currents to boost the precision of electrical tasks. Four-quadrant sourcing and measuring means there's no need to change connections. A colour LCD graphical user interface with task-based viewing modes gives you a clear picture of graphs and numerical readings for accurate testing and debugging. For convenience, the included software lets you keep your finger on the pulse from remote computers.

• USB, LAN, GPIB and I/O interfaces for easy link-ups and data transfer
• Robust plastic housing for resistance to impact and wear

Applications

• Photovoltaic cells
• Semiconductor testing
• Medical equipment
• Automotive manufacturing

The Keysight B2900B / BL Series Precision Source/Measure Units are compact and cost-effective bench-top Source/Measure Units (SMUs) with the capability to source and measure both voltage and current. These capabilities make the B2900B / BL Series SMU ideal for a wide variety of IV (current versus voltage) measurement tasks that require both high resolution and accuracy. It has a voltage maximum of ±210 V, a current maximum ± 3 A DC, and ±10.5 A pulsed sourcing capabilities. With a precision minimum of 10 fA / 100 nV sourcing and measuring resolution, a colour LCD graphical user interface (GUI) and several task-based viewing modes will improve your productivity for test, debug, and characterization.

What's the meaning of compliance in a source meter?

Integrated 4-quadrant sourcing and measuring capabilities
Measurement range: ±210 V, ±3 A (DC), ±10.5 A (pulsed)
Source and measurement resolution down to 10 fA and 100 nV
10 microsecond digitizing capability

Compliance refers to the maximum voltage a current source will reach when it aims to get to the programmed current value.

Do I need to mount this source meter?

This is a bench device, which means you can simply station it on your worktop without having to mount it.
