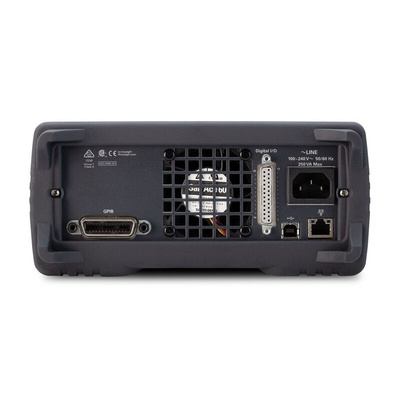

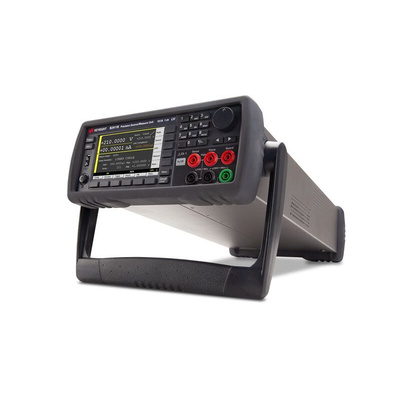

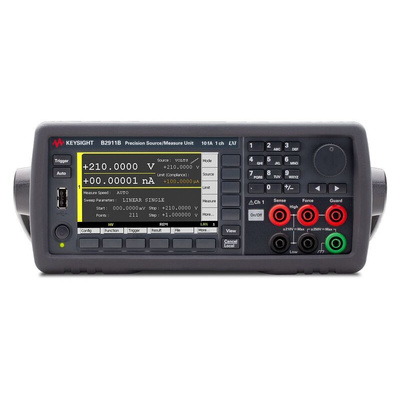

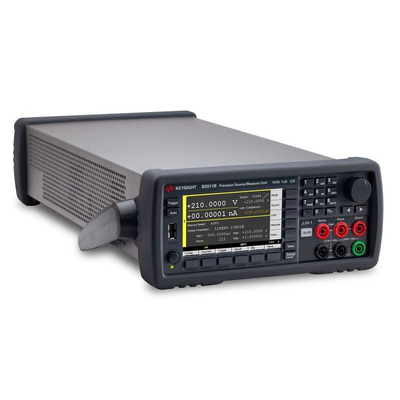

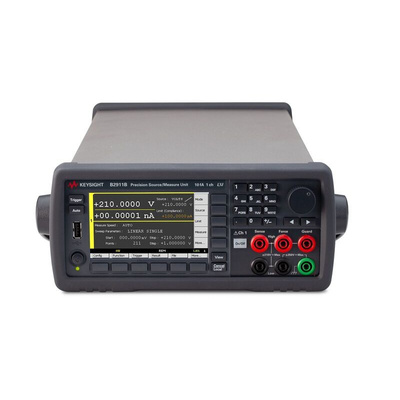

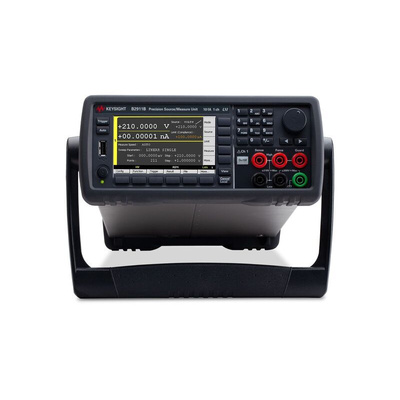

B2911B, Keysight Technologies B2900B Series Source Meter, 100 nV → 210 V, 1-Channel, 31.8 W Output

The Keysight B2900B / BL Series Precision Source/Measure Units are compact and cost-effective bench-top Source/Measure Units (SMUs) with the capability to source and measure both voltage and current. These capabilities make the B2900B / BL Series SMU ideal for a wide variety of IV (current versus voltage) measurement tasks that require both high resolution and accuracy. It has a voltage maximum of ±210 V, a current maximum ± 3 A DC, and ±10.5 A pulsed sourcing capabilities. With a precision minimum of 10 fA / 100 nV sourcing and measuring resolution, a colour LCD graphical user interface (GUI) and several task-based viewing modes will improve your productivity for test, debug, and characterization.

Integrated 4-quadrant sourcing and measuring capabilities
Measurement range: ±210 V, ±3 A (DC), ±10.5 A (pulsed)
Source and measurement resolution down to 10 fA and 100 nV
10 microsecond digitizing capability

Upgrade your bench - and get a free accessory or upgrade worth up to €530 / £450!
RS customers purchasing a qualifying power supply, DMM, DAQ, SMU or waveform generator will be eligible for one of the following free products: U1232A hand-held DMM, or a U1733C hand-held LCR meter, or a 11059A Kelvin probe set or a 34307A Thermocouple kit. Alternatively, customers purchasing a qualifying DMM or waveform generator can select the memory upgrade for that instrument instead. Customers must submit a claim and provide purchase information via the following webform: www.keysight.com/find/ChooseRewardClaim Offer valid for purchases from 01-Feb-2024 until 31-August-2024, claims will be accepted up to 90 days later, provided the qualifying products were purchased within the promotion period. Keysight will validate the purchase and arrange shipment to the customer. This promotion is offered to all customers in EMEAI excluding Israel.

Datasheet - B2900B-TD-3120-1466-2020-10-06.pdf

UN38.3 Lithium Battery Test Summary
