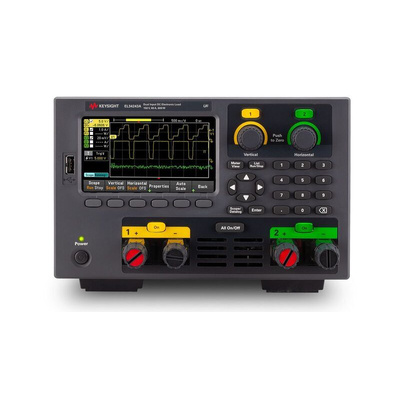

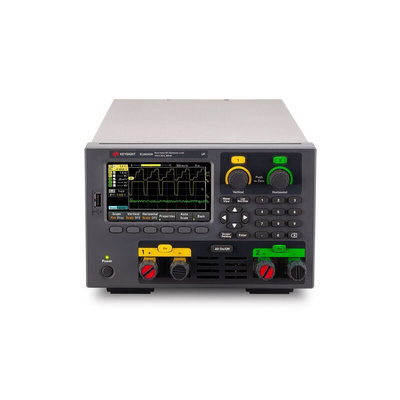

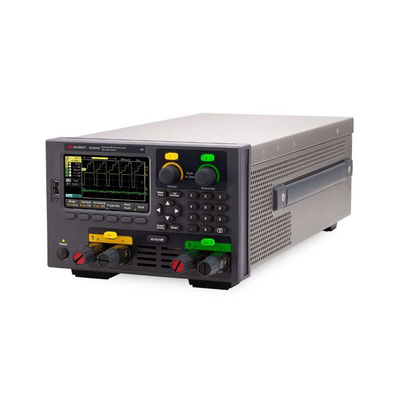

EL34243A, Keysight Technologies EL30000A Series Electronic Load, 300 W, 0 → 150 V, 0 → 60 A

Keysight Technologies Electronic Load, Dual Channel, 20ms to 60s Sampling Rate - EL30000 Series - EL34243A

Get to know the full characteristics of your power source with this electronic load from Keysight Technologies. It measures the voltage and current levels at a set loading point for increased accuracy. Thanks to its dual-channel design, you can test two input sources at the same time. The built-in data logger lets you store your measurement data so you can retrieve it in a flash. An adjustable data sampling rate between 20ms and 60s means you get lightning-quick results.

• Data logging of up to 10,000 hours to store large volume of results
• Fully SCPI-programmable for convenient parameter setting

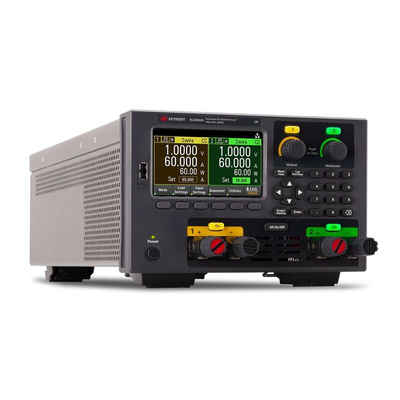

• Front-facing LCD screen for quick status monitoring and configuration
• Command processing time of

Applications

• Communications equipment
• Aerospace engineering
• Laboratories
• Solar power stations

The Keysight Technologies EL30000A Series bench DC electronic loads provide superior performance in compact bench form factor. A single and dual channel model is available with up to 600 W – ideal for design verification of consumer power supplies, batteries, battery modules, solar panels, LED drivers, and power converters. You can easily characterize wide-bandgap semiconductor components such as MOSFET and IGBT.

What's the voltage and current measurement range of this electric load?

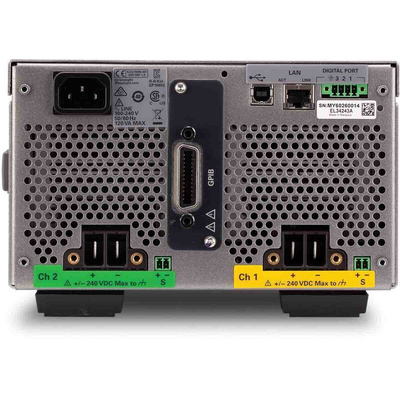

EL30000A Series bench DC electronic loads are fully SCPI programmable with built-in USB, LAN, and optional GPIB interfaces
Advance features include scope view
data logging &sequencing
Enabling you to measure, capture, and quickly display your results

This load has a broad voltage measurement range between 0 and 150V DC and a current measurement range between 0 and 60A. This means it's just the thing for testing low and high-power conditions in your electrical system.
