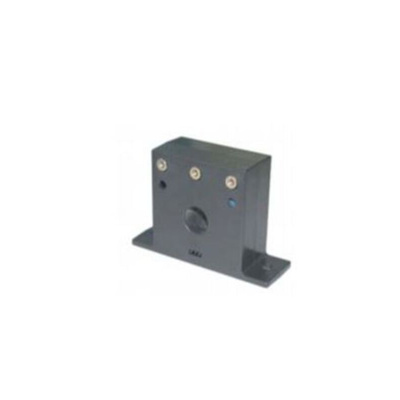

RS PRO Solid Core Current Transducer, 5A Input, 13.8mm Bore

RS PRO Solid Core Current Transducers

RS PRO are pleased to introduce a series of solid core current transducers. They are transducers for the electronic measurement of AC sinusoidal waveforms with galvanic isolation between the primary (high power) and the secondary circuit (electronic circuit). Solid core current transducers are commonly found in applications of automation control systems analogy current reading for remote monitoring.

What is a current transducer?

A current transducer is a device that converts the current into a standard electrical signal. It is formed by four parts; sensitive component, conversion circuit, conversion component, and power circuit.

What is the difference between a current transformer and a current transducer?

A current transformer is a power transmission unit and a current transducer is a signal transmission unit.

Features and Benefits

• Type: Solid Core
• AC sinusoidal measurement
• Panel mounting
• Compact size
• Transducer for the electronic measurement of AC sinusoidal waveforms
• Current output
• Frequency bandwidth: 5-60 Hz
• Insulated plastic case recognised according to UL 94-V0

Specification

• Operating temperature: -25 °C ∼+ 65 °C
• Storage temperature: -25 °C ∼+ 65 °C
• Supply Voltage: 24 V DC
• Operating humidity: < 85% RH, NO condensation, In-house & any direction installable
• Storage humidity (noncondensing) <85% RH
• Weight: 123 g

RS PRO Solid Core Current Transducers Range Options

• 5A, AC Current Transducer; RS stock no: 210-0638
• 50A, AC Current Transducer; RS stock no: 210-0637
• 200 A, AC Current Transducer; RS stock no: 210-0636

Approvals

RS compliant, CE, UL94

Applications

• Energy Consumption
• Motor Monitoring
• Machine maintenance
• Process monitoring

Why would you choose RS PRO for current transducers?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products has been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
