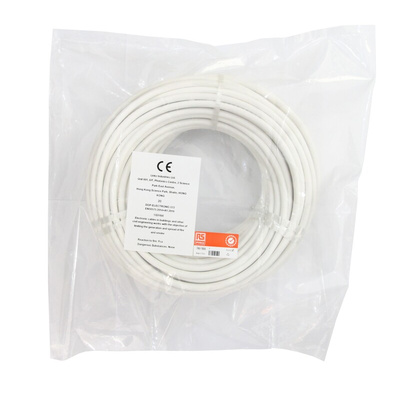

RS PRO 3 Core Power Cable, 1.5 mm², 25m, White Silicone Sheath, High Temperature, 20 A, 450 V

RS PRO 3 Core YGZ Silicone Insulated Equipment Wire

Introducing the range of RS PRO equipment wires, ideal for use across a wide variety of electrical power, lighting and internal wire applications. The flexible hookup cable can be used for reliable cable connections in a neat and well-organised layout. By using this RS PRO high-quality range of multicore equipment cables, the installation wires can be easily colour coded by using the different sheath colours available in the range, dependant on the installation terminals being used. In addition to this, the robust and carefully manufactured tinned copper conductor ensures optimum reliability and performance, regardless of the application the wires are being used for. Silicone insulation to the wire provides brilliant thermal stability meaning it can maintain a great electrical performance in high and low temperatures which means that it can hook up to electronics even in the harshest environments.

Features and Benefits

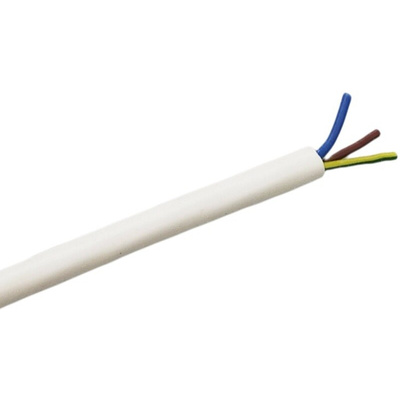

• This RS PRO 3 core cable has blue, brown and yellow/green colour coded cables with a length of 25 metres


• Ideal for low voltage multi-purpose cable installations


• It is a flexible cable with a durable silicone protective sheath and tinned copper conductors


• The cable offers strong and durable insulation due to the silicone insulation material and installation is easy and efficient thanks to the flexible layout of the cable


• Operating temperature: -60 °C to +200 °C


• Conductor resistance (20℃ Ω/km): 13.7 Ω/km


• Voltage Rating: 750 V

Applications

Equipment wire or hookup wire can be used for a wide variety of low voltage and current applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the silver-plated copper conductors and ETFE housing, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:
Circuit boards
Computer internals
Mobile phones and other battery-operated devices
Vehicle lights

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
