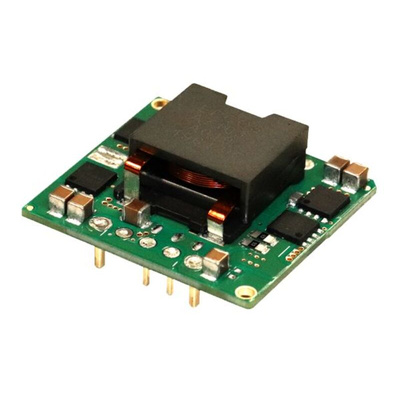

i7C4W008A120V-003-R, TDK-Lambda Non-Isolated DC-DC Converter, 8A

2101273
Номер производителя: i7C4W008A120V-003-RПроизводитель: TDK-Lambda
Цена за шт.
15135.00 руб. (С НДС) *
Количество 5+ 10+
Цена 14379.00 руб. 13773.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The TDK-Lambda i7C series of non-isolated step-up / step-down converters are ideal for generating additional DC output voltage rails up to 300 W from a single output 12V, 24V or 48V AC-DC power supply. The highly efficient i7C series accepts a very wide DC input and has a wide output adjustment range. Three mechanical configurations are available
low profile open frame, baseplate construction for conduction cooling, or integral heat sink for convection or forced air cooling. A full feature* Power Good signal, switching frequency synchronization and output current monitoring option is available.

Up to 300W in a 1/16th Brick Pin-Out
High Efficiency - Up to 97%
Wide 5 to 28V or 9.6 to 48V Output Adjustment
Wide 9 to 53Vdc Input Range
Low Component Count With Minimal External Components
Low Airflow With Minimal Derating Requirements
High Power Density, Less Board Area Needed
Longer Battery Life / Low Power Consumed
One Part Supports Multiple System Voltages
Can Operate From Different DC Source Voltages
Easy To Cool In End System

Техническая спецификация
pdfDatasheet - i7C4W008A120V-003-R
Выходной ток:
8A
Диапазон входного напряжения:
9 → 53 В пост. тока
Мощность номинальная:
300Вт
Номинальное входное напряжение:
9 В пост. тока
