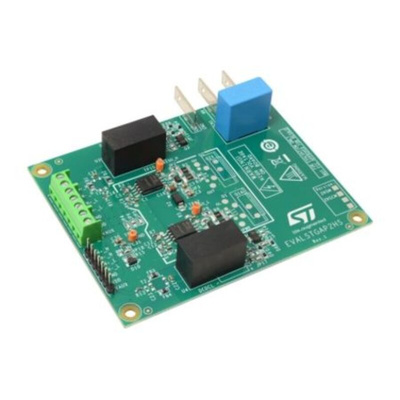

The STMicroelectronics EVALSTGAP2HSCM is an isolated single gate driver. The gate driver is characterized by 4 A current capability and rail-to-rail outputs, making the device suitable also for high power inverter applications such as motor drivers in industrial applications equipped with MOSFET / IGBT power switch. The configuration featuring single output pin and Miller CLAMP function allows avoiding gate spikes during fast commutations in half-bridge topologies. The device integrates protection functions: UVLO and thermal shutdown are included to easily design high reliability systems.
Board
High voltage rail up to 1200 V
Negative gate driving
Onboard isolated DC-DC converters to supply high-side and low-side gate drivers, fed by VAUX = 5 V, with 5.2 kV maximum isolation
3.3 V VDD logic supply generated onboard or 5 V (externally applied)
Easy jumper selection of driving voltage configuration: +15/0 V
+15/-3 V
+19/0 V
+19/-3 V
Datasheet - EVALSTGAP2HSCM| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
