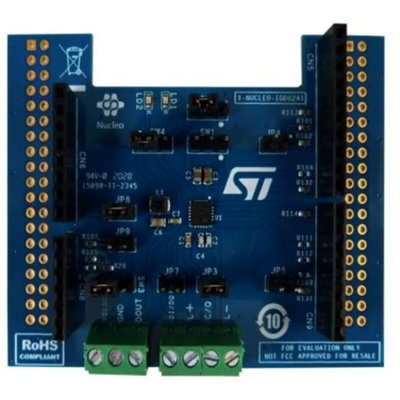

The STMicroelectronics X-NUCLEO-IOD02A1 expansion board for STM32 Nucleo is based on the L6364Q dual channel SIO and IO-Link PHY device transceiver embedding 50 mA 3.3 V and 5.0 V voltage regulators, DC-DC converter and M-sequence management. The expansion board provides an affordable and easy-to-use solution for the development of SIO and IO-Link industrial sensor applications, letting you easily evaluate the L6364Q communication features and robustness.
2-channel (CQ and DIO) IO-Link PHY layer
IO-Link DLL (M-sequence handler and checksum)
Wake-up detection
Interrupt diagnostic pin
SPI and UART interfaces
50 mA 3.3 V and 5.0 V linear regulators
50 mA adjustable (5.0 ÷ 10.8 V) buck converter
Overload protection with adjustable intervention threshold
Overheating protection with adjustable shutdown threshold
Full reverse polarity on process side
Ground and VCC wire break protections
Datasheet - X-NUCLEO-IOD02A1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
