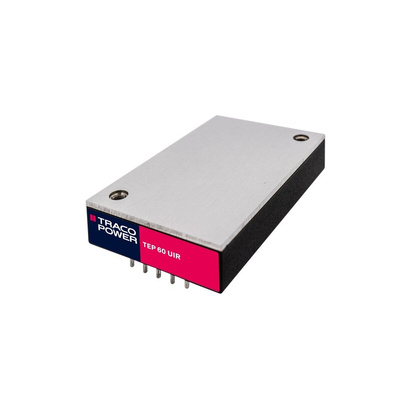

TEP 60-7211UIR, TRACOPOWER TEP 60UIR DC-DC Converter, 5V dc/ 12A Output, 14 → 160 V dc Input, 60W, Through Hole, +85°C Max Temp

The TRACO POWER TEP 60UIR is a series of high performance 60 Watt railway DC/DC converters with ultra wide 12:1 input voltage range featuring a compact brick (2.3”x1.45”x0.5”) metal package. The ultra wide input allows the converter to act as an all-in-one solution if different voltage ranges have to be covered in the same application, resolving the issue of having multiple different converters installed. An internal circuit implemented in these modules helps to extend the hold-up time with ease as it eliminates the need of expensive high voltage capacitors to cover the full input range.

Bus pin to easily extend hold-up time
Operating temperature range –40°C to +75°C
I/O-isolation 3’000 VAC
Efficiency 91%
Adjustable output voltage, Remote On/Off and adjustable under voltage lockout
EN 50155 and EN 61373 approval for railway applications
Qualification for fire behaviour according to EN 45545-2
