X3047702, Norgren Lever 5/2 Pneumatic Manual Control Valve X30 Series, G 1/8, 1/8in, Клапан

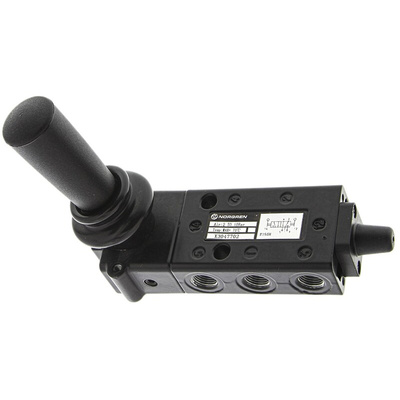

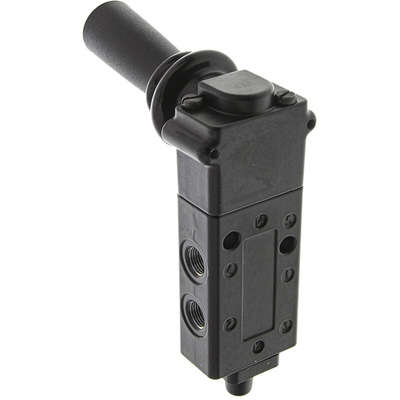

IMI Norgren Pneumatic Manual Control Valve, 5/2 Function, Lever Control Mechanism - X30 Series - X3047702

Reliably direct your airflow with this manual control valve from IMI Norgren. As it has a 5/2 valve function, it's suitable for managing dual air supplies to give you close control over double-acting equipment like piston rods. The device achieves a maximum flow rate of 335L/min so it's able to maintain an efficient air supply to keep your hardware working effectively. Thanks to a lever actuator, this unit is a convenient way to quickly manage your air-powered systems.

Features & Benefits

• Die-cast zinc casing is corrosion-resistant to perform in intense conditions
• Wide operating pressure range of -0.9 to 10 bar handles demanding air supplies
• Industry-standard G1/8 thread connection is compatible with common pneumatic devices
• Durable NBR seal prevents leakage to maintain optimal system pressure

Applications

• Pressure relief devices
• Air-powered tools
• Oxygen concentrators
• Construction industry

What temperatures can I use this control valve at?

The valve is safe for use between 0 and +70°C. If you're planning to use the component at or below +2°C, you should make sure your compressed air supply is dry to prevent ice blocking your system's airways.
