X3048402, Norgren Pedal 5/2 Pneumatic Manual Control Valve X30 Series, G 1/8, 1/8in, Клапан

IMI Norgren 5/2 Pedal Pneumatic Manual Control Valve, G1/8 Thread, 22N Operating Force - X30 Series - X3048402

For hands-free pneumatic operation, use this robust pedal control valve from IMI Norgren. When you depress it with your foot, the device actuates the attached cylinder. Its spring-return configuration makes it suitable for air-controlled functions like dosing and punching. As its durable zinc body is resistant to corrosion and impact, this device is suitable for use in harsh environments. It operates in a pressure range of 0.9 to 10 bar, which means that you can use it for both light-duty and heavy-duty applications.

Features & Benefits

• Wide operating temperature range of 0°C to +70°C for use in challenging settings
• Nitrile rubber seals block out dust and contaminants to support optimal performance
• Grooved design ensures good foot traction, allowing comfortable and precise operation
• Compact dimensions of 100 (length) x 36 (width) x 21mm (height) for space efficiency

Applications

• Safety doors
• Mechanical workshops
• Process and packaging industry

What air condition do I need while using this valve?

At temperatures below +2°C, ensure the air supply to this valve is dry. This prevents ice formation, which may cause blockages and hinder performance.

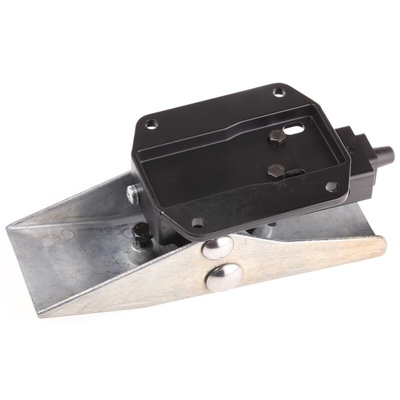

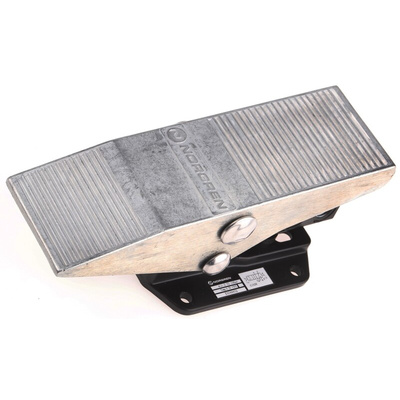

Black Pedal Pneumatic Manual Control Valve
