SLV/11883/1, Norgren Emergency Stop 3/2 Pneumatic Manual Control Valve Super X Series, G 1/8, 1/8in, Клапан

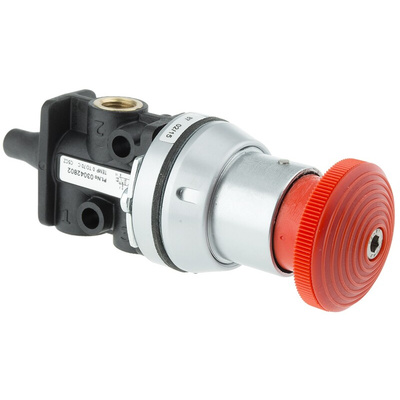

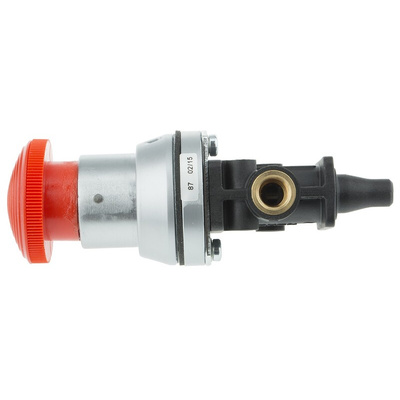

IMI Norgren Emergency Stop Pneumatic Manual Control Valve, G1/8 Thread, 3/2 Function - Super X Series - 03042802

Use this manual control valve from IMI Norgren to direct the flow of air in your pneumatic system. As it has a 3/2 function, it can control three ports by moving in two directions. A broad operating pressure range between -0.9 and 10 bar makes it suitable for use in low-pressure and high-pressure applications. The valve features a bright red control button so you can also use it as an emergency stop mechanism to halt air flow quickly in potentially dangerous situations.

Features & Benefits

• Maximum flow rate of 335L/min (litre per minute) for use in high-flow applications
• Corrosion-resistant polymer body for durability
• Lightweight at 0.21kg for minimal strain on equipment
• Ambient operating temperature range between 0°C and +70°C to withstand challenging environments
• Nitrile rubber seals are resistant to oils and solvents for use in factory settings

Applications

• Marine engineering
• Automated industrial processes
• Wind turbines

Where should I mount this control valve?

You can mount this valve directly on a cylinder with a bore up to 50mm, making it suitable for use in heavy-duty equipment. It also features through holes in its body for quick installation.

Super X Inline Spool Valve Data Sheet
