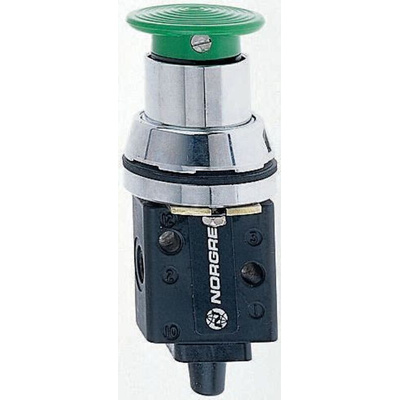

03036802RS, Norgren Push Button 3/2 Pneumatic Manual Control Valve 03 Series, G 1/8, 1/8in, III B, Клапан

IMI Norgren Pneumatic Manual Control Valve, 335L/min Maximum Flow Rate, -0.9 to 10 Bar Operating Pressure - 03 Series - 03036802RS

Keep airflow control at your fingertips with this pneumatic manual control valve from IMI Norgren. A 3/2 port configuration lets you easily divert air between different lines, while the push button gives you a super-simple switching method. Thanks to the spool operation, this versatile valve is capable of working at pressures between -0.9 and 10 bar. This makes it a great all-rounder for vacuum and low-to-medium-power pneumatic systems. As the unit handles flow rates up to 335 litres per minute, your processes can go full steam ahead.

Features & Benefits

• Performs reliably in a temperature range from 0°C to +70°C
• Nitrile rubber seals for durability and leak-free performance
• Versatile component works with both lubricated and non-lubricated air
• Possible to connect multiple air supplies to keep systems flexible

Applications

• Industrial automation
• Pneumatic cylinders
• Actuators
• Vacuum pumps

How do I mount this pneumatic manual control valve?

Through-holes in the body mean you can mount this valve in-line, making installation simple and space-saving. A G1/8 thread ensures a secure fit with standard pipelines.

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.
