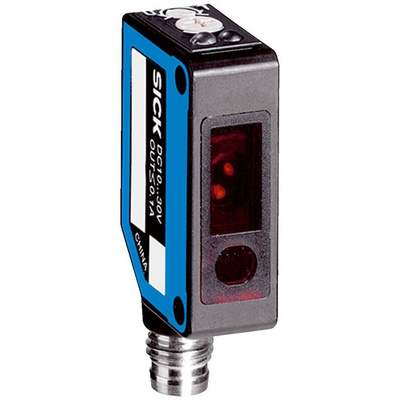

WTB8L-N2211, Sick Background Suppression Photoelectric Sensor, Block Sensor, 5 mm → 100 mm Detection Range, Фотоэлектрический датчик

Overview

At a glance

Laser class 1
Background suppression
Standard miniature housing with M3 threaded mounting holes
Switching frequency up to 2 kHz
Light/dark switching via rotary switch
Mounting bracket BEF-W100-A is included with delivery

Your Benefit

Highly flexible design and operational capabilities due to precise background suppression
Reliable detection of small objects, regardless of color or surface qualities

The WTB8L is a high-quality miniature photoelectric proximity sensor with laser emitter LEDs and outstanding background suppression specially designed for close-range applications. High switching frequencies of 2 kHz make these sensors suitable for a broad range of applications. The housing design, with M3 threaded mounting holes, ensures easy and secure mounting.

Applications

Rapid switching frequency reliably detects objects travelling at high speeds which allows to optimize the production processes
Highly visible laser light spot simplifies alignment
All necessary accessories are included with delivery, reducing installation and procurement costs

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - WTB8L-N2211
