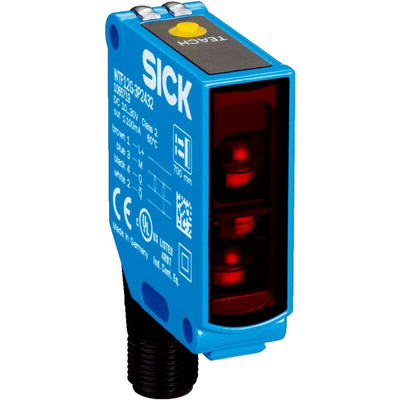

WTF12G-3N2432, Sick Foreground Suppression Photoelectric Sensor, Block Sensor, 150 mm → 700 mm Detection Range

Overview

At a glance

Advanced SICK technology
Elimination of the reflector as an error source
Machine parts can be used as a reference surface
AutoAdapt for continuous threshold adaptation in contaminated conditions
PinPoint LED with bright and precise light spot
Easy-to-use teach-in pushbutton
Status LEDs visible from all sides
Rugged metal housing (PTFE coating available on request)

Your Benefit

Reliable detection of transparent and semitransparent objects without a reflector
Reliable detection of objects regardless of color or surface qualities
Freedom of machine design: no mounting system for the installation of a reflector required
Quick commissioning: there is no need to mount a reflector or precisely adjust the sensor
High operational safety: if the background becomes contaminated, object detection will continue uninterrupted
Machine downtime is minimized: the integrated AutoAdapt function extends the time between cleanings
Heightened productivity: mechanical and chemical ruggedness due to the metal housing

MultiTask photoelectric sensors are now able to detect transparent and semitransparent trays and bottles without the need for reflectors, a frequent source of errors. In these applications, the reference surface is provided by a stable matte background. Sensitivity is taught in simply by pressing the teach-in button. Even high-gloss, reflective, or uneven surfaces can be detected reliably. Combined with AutoAdapt, SICK’s function for continuous threshold adaptation, TranspaTect sensors provide a cost-effective and reliable detection solution in packaging processes in the food and beverage, and pharmaceuticals industries.

Applications

Detection of transparent objects without the use of a reflector
Detection of transparent objects without the use of a reflector

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - WTF12G-3N2432
