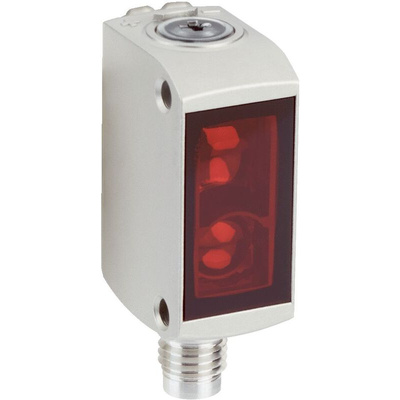

GTB6-F4411V, Sick Background Suppression Photoelectric Sensor, Block Sensor, 5 mm → 250 mm Detection Range

Overview

46

At a glance

Housing made of stainless steel 1.4404 (316L), mounting holes with M3 thread
Red light and infra-red LED versions
Adjustable light/dark switching via cable connection
Coated front screen for higher resistance to scratching
IP69K enclosure rating
Meets Ecolab tests requirements

Your Benefit

Detection of objects with variation in texture and color, with red and IR LED options
Shock resistant stainless-steel housing with IP69K enclosure rating suitable for Ecolab washing detergents
Convenient light/dark switching via cable connection
Easy mounting with M3 threaded mounting holes
Superior optical performance and robustness using SICK ASIC
Easy installation and adjustment with user friendly potentiometer and highly visible indicator LEDs

With its special sealing, the G6 Inox product family is particularly resistant to chemicals and washing detergents in washdown applications. The photoelectric sensors are available in different versions for different applications: With background suppression, as through-beam or photoelectric retro-reflective sensors. Complementary outputs enable easy light/dark switching. The compact and rugged housing made of stainless steel 1.4404 (316L) also withstands heavy impacts
the reinforced and coated front screen is highly resistant to scratches. Mounting holes with M3 threads guarantee quick and simple mounting. The black background of the indicator LEDs ensure better visibility.

Applications

Detection of transport crates on conveyor belt

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - GTB6-F4411V
