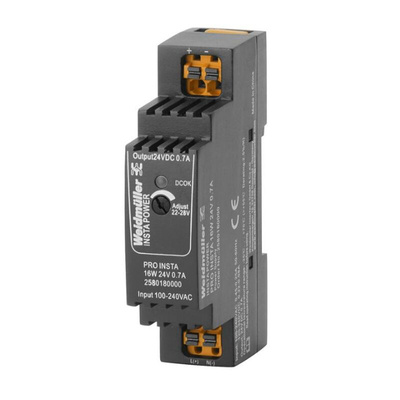

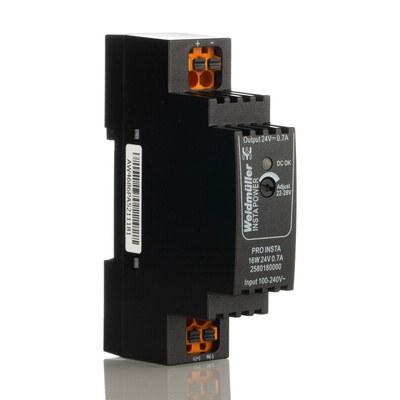

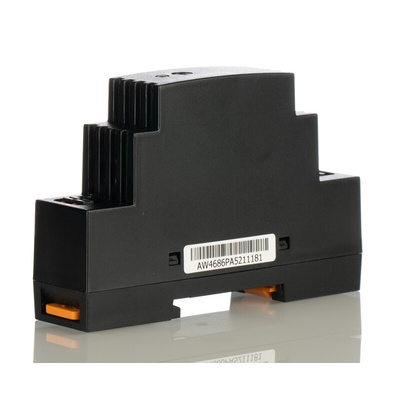

2580180000, Weidmuller Weidmüller PRO INSTA DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 700mA Output, 16W

Weidmuller DIN Rail Power Supply, Push-In Connection, 24V DC Output Voltage - PRO INSTA Series – 2580180000

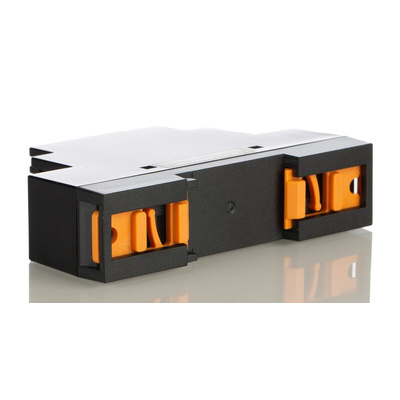

Switch up your electrical source with this DIN rail power supply from Weidmuller. It converts inputs between 85 and 264V AC or between 95 and 370V DC into an output voltage of 24V DC, giving you steady power for your low-voltage equipment. DIN rail mounting makes the unit a doddle to install as it simply snaps into place. An efficiency rating of 82.5% means you can count on this device to waste minimal energy as heat for reliable performance.

Features & Benefits

• Plastic housing is resistant to impact and wear
• IP20 rating indicates it's finger-safe and protected against objects larger than 12mm
• LED indicator gives the green light when the operating voltage is acceptable for ease of monitoring
• Suitable for use in demanding conditions, thanks to its wide operating temperature range between -25°C and +70°C
• Light weight of 82g to place minimal strain on your rail

Applications

• Telecommunications systems
• Signal controls
• Industrial automation

How do I connect wires to this unit?

It uses a push-in connection system that makes it a breeze to link wires without the need for any tools.
