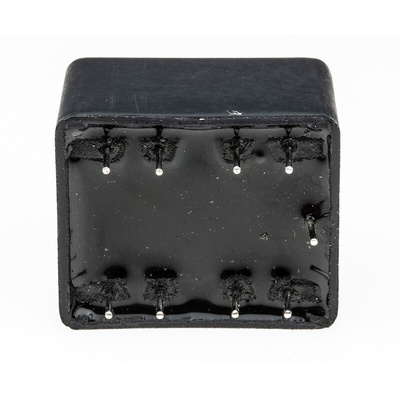

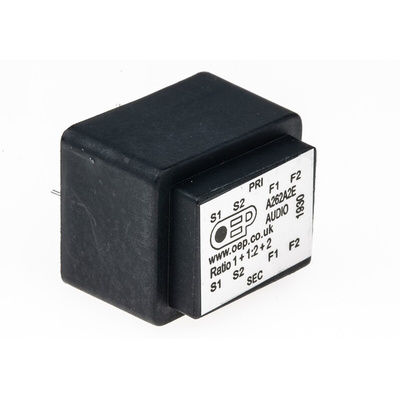

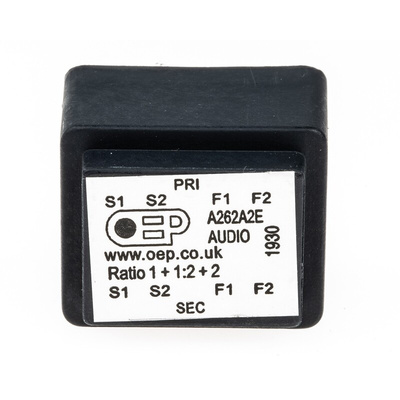

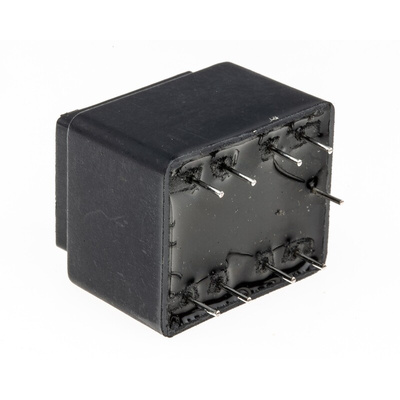

A262A2E, OEP Through Hole Audio Transformer 600Ω 100mW Hz @ 300, 1mW Hz @ 30

High Performance Encapsulated AF, PCB Mount

From OEP, a range of high performance, industry standard PCB mounting audio frequency transformers. The dual primary and secondary windings of these frequency transformers provide a wide range of impedance matching ratios to suit many input, interstage and output applications.

Features and Benefits:

• Industry standard 0•1in. grid spacing
• Resin encapsulated in glass filled nylon case
• Foil interwinding screen
• Optional Mu-metal, a nickel-iron alloy, screening can (stock no. 210-6469)

The OEP Audio Frequency Transformer range also includes:

• 210-6403 is a 3.75Ω, 6.3+6.3:1+1 PCB mount audio transformer
• 210-6419 is a 600Ω, 1+1:2+2 PCB mount audio transformer
• 210-6425 is a 600Ω, 1+1:6.45+6.45 PCB mount audio transformer
• 210-6431 is a 150Ω, 1+1:1+1 PCB mount audio transformer
• 210-6447 is a 600Ω, 1+1:1+1 PCB mount audio transformer
• 210-6469 is an optional Mu-metal, nickel-iron alloy screening can

A262A2E Data Sheet
