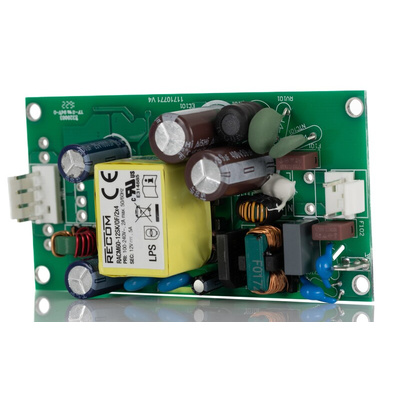

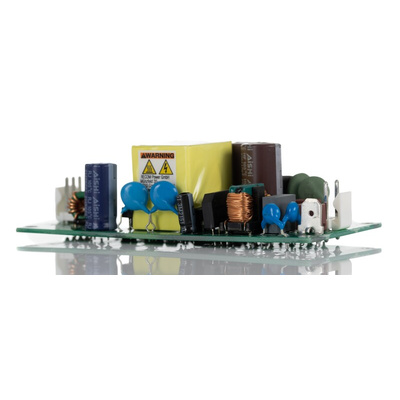

Recom Switching Power Supply, RACM60-12SK/OF/2x4, 12V dc, 5A, 60W, 1 Output, 80 → 264V ac Input Voltage

RECOM Switching Power Supply, Open Frame Package, 47 to 63Hz Input Frequency - RACM60-K/OF Series - RACM60-12SK/OF/2x4

Got alternating current when you want direct current? Choose this switching power supply from RECOM to make the change. Its wide input voltage range of 80 to 264V AC gives you plenty of wiggle room if you're handling variable supplies. The unit delivers 12V DC, so it's an ideal choice for low-power applications. It gets going quickly, thanks to a speedy 150ms start-up time. This converter is a reliable option with a mean time between failures of up to 900,000 hours, so you can be sure of around-the-clock performance.

• 90% typical efficiency minimises waste, making this an energy-conscious choice
• Self-extinguishing PCB material stops burning within ten seconds for enhanced safety in the event of a fire
• Broad operating temperature range of -40°C to +85°C suits harsh industrial conditions

Applications

• Medical equipment
• Consumer electronics
• Mechanical workshops

The Recom multi-purpose, industrial + household + medical grade AC/DC converter series RACM60-K/OF delivers a fixed output power from -40°C to +55°C with natural air convection only, and up to +85°C with derating or forced air cooling. With a clear focus on extended thermal performance for systems where space is limited, these compact modules are designed to gain highest overall efficiency levels over the full output load range from universal AC inputs. The robust built-in class B EMC filter has sufficient margin to allow both Class II or Class I PELV with grounded output. The RACM60-K/OF has various medical safety and medical EMC certifications and is designed to meet B and BF requirements.

What size is this power supply?

ANSI/AAMI ES60601-1 Ed 31 certified
CSA/CAN-C222 No 60601-1:14 certified
4000/5000m (medical/ITE) operating altitude

It has compact dimensions of 101.6 (L) x 53 (W) x 31.5mm (H), so helps you make the most of space in your setup.

How much does this unit weigh?

This switching power supply weighs in at just 120g, so it doesn't strain your system.
